AUZ-32.768KBE-T

Oscillators Overview

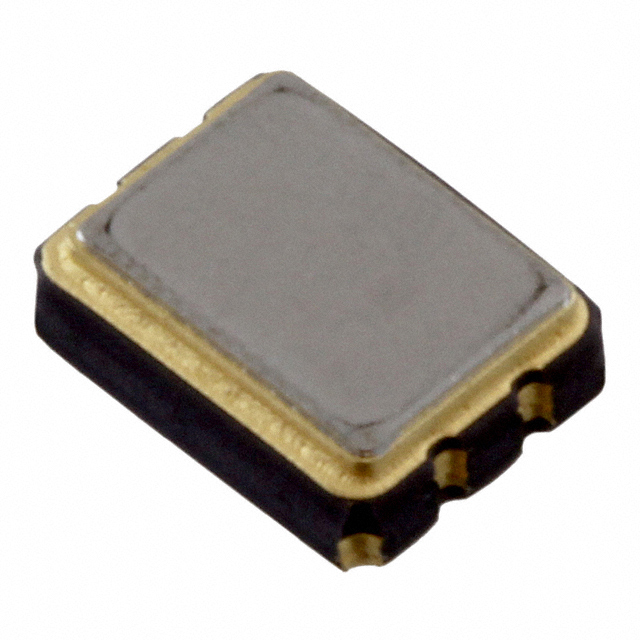

The AUZ-32.768KBE-T is a standard clock oscillator manufactured by TXC Corporation, designed for automotive-grade applications. It operates at a frequency of 32.768 kHz with a CMOS output format. The device supports a supply voltage of 3.3V and features an enable/disable control function. Frequency stability is rated at ±50ppm over the operating temperature range of -40°C to +85°C. The component utilizes a 4-SMD, no lead package with dimensions of 3.2mm x 2.5mm.

Oscillators Feature Summary

• CMOS output signal format suitable for digital logic interfaces
• Integrated enable and disable control functionality for power management
• Automotive-grade reliability certification ensuring robust performance in vehicle environments

Oscillators Applications

• Automotive electronic systems requiring precise timing references
• Clock generation for microcontrollers and processors in vehicles
• Real-time clock circuits in automotive infotainment units

Oscillators Procurement Notes

Verify that the specific part number matches the required automotive grade specifications and package dimensions. Confirm the enable/disable pin configuration aligns with the system design requirements. Ensure the supply voltage tolerance of 3.3V is compatible with the target circuit. Check for any specific AEC-Q100 certification documentation if required for compliance.

Oscillators Selection Notes

Select this component when an automotive-grade quartz oscillator with low power consumption and enable control is needed. The 32.768 kHz frequency is ideal for real-time counting applications. The compact SMD package facilitates space-constrained PCB layouts. Consider the ±50ppm stability requirement against system timing accuracy needs.

Oscillators Part Context

This model belongs to the AUZ series of standard clock oscillators from TXC Corporation. The series is characterized by its automotive qualification and small form factor. It serves as a timing source for various embedded systems within automotive electronics, providing stable frequency generation in harsh thermal environments.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing designs before considering alternative manufacturers or models.
