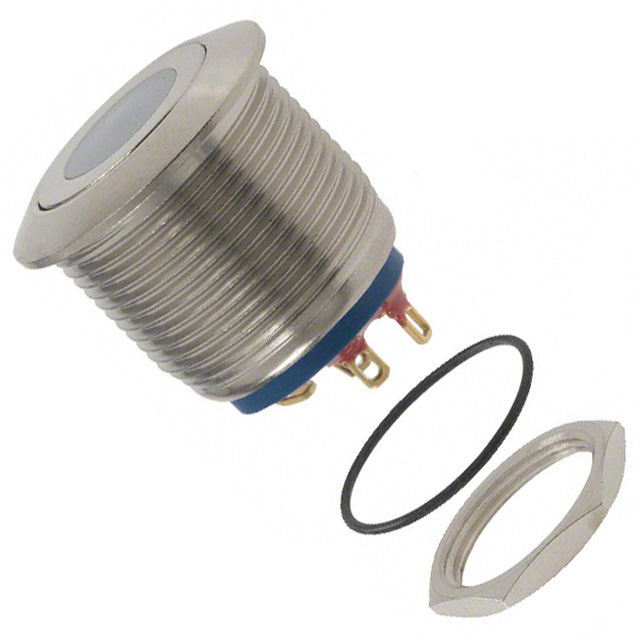

AV09C7L3D2001K

AV09C7L3D2001K is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists APEM Inc.. Its product description is SWITCH PUSH SPST-NO 0.05A 24V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for AV09C7L3D2001K

• Description：SWITCH PUSH SPST-NO 0.05A 24V
• Series：AV
• Mfr：APEM Inc.
• Package：Bulk
• Mounting Type：Panel Mount, Front
• Type：Anti-Vandal, Illuminated
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Current Rating (Amps)：50mA (DC)
• Actuator Type：Round, Button, Flush
• Actuator Marking：No Marking
• Color - Actuator/Cap：Silver
• Illumination Type, Color：LED, Blue
• Illumination Voltage (Nominal)：2 VDC
• Termination Style：Solder Lug
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：Sealed - Fully
• Panel Cutout Dimensions：Circular - 19.20mm Dia
• Operating Temperature：-30°C ~ 70°C
• Voltage Rating - DC：24 V
• Voltage Rating - AC：-

Pushbutton Switches datasheet and documents for AV09C7L3D2001K
