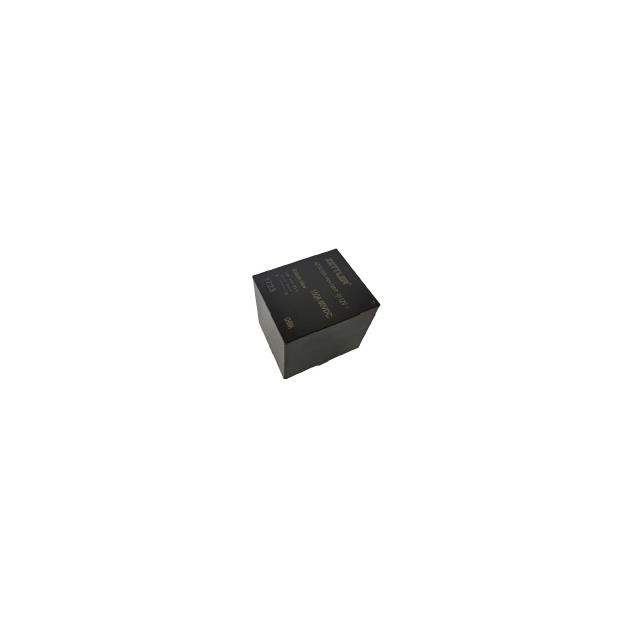

AZDC105-1AH-24DT

AZDC105-1AH-24DT is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists American Zettler. Its product description is RELAY GEN PURPOSE SPST 150A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for AZDC105-1AH-24DT

• Description：RELAY GEN PURPOSE SPST 150A 24V
• Series：AZDC105
• Mfr：American Zettler
• Package：Tray
• Mounting Type：Through Hole
• Coil Voltage：24VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：150 A
• Switching Voltage：60VDC - Max
• Load - Max Switching：9000W
• Coil Current：133.3 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：18 VDC
• Must Release Voltage：1.2 VDC
• Operating Temperature：-40°C ~ 65°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：TUV, UL
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：30 ms
• Release Time：10 ms
