Product Detailed Parameters
- Description：LED GREEN/RED DIFF 1210 SMD R/A
- Series：B2592USNG20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：Diffused
- Millicandela Rating：285mcd Green, 285mcd Red
- Lens Style：Round with Domed Top
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：3.3V Green, 2V Red
- Current - Test：20mA
- Viewing Angle：120° Green, 140° Red
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：525nm Green, 624nm Red
- Wavelength - Peak：520nm Green, 632nm Red
- Features：-
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：1210
- Size / Dimension：3.20mm L x 2.55mm W
- Height (Max)：1.70mm
- Grade：-
- Qualification：-
Download product information
Overview

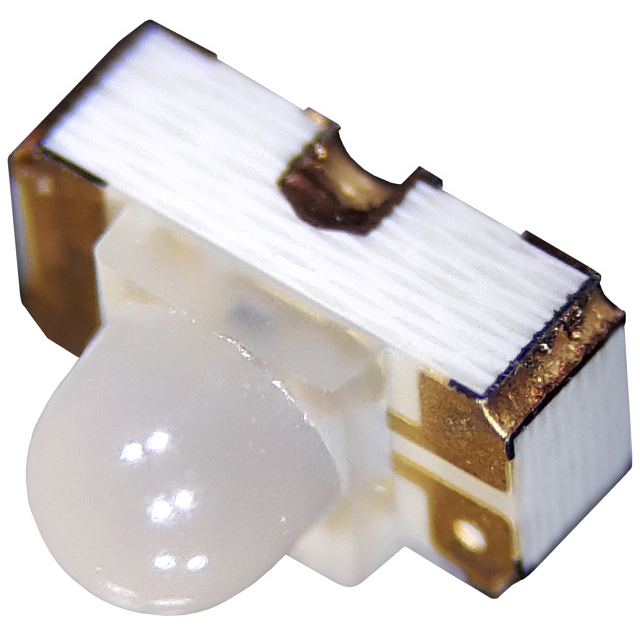

The B2592USNG20D0001L2U1930 is a dual-chip surface-mount LED from Harvatek Corporation, housed in a 1210 (3225 Metric) package. It integrates two distinct light-emitting diodes: one emitting green light at a peak wavelength of 525nm with a typical forward voltage of 3.3V, and another emitting red light at a peak wavelength of 624nm with a typical forward voltage of 2V. The component measures 3.20mm in length, 2.55mm in width, and has a maximum height of 1.70mm. It operates under standard moisture sensitivity level 2A conditions.
Feature Summary
- Dual-color configuration combining green and red emission sources within a single surface-mount footprint
- Side-view chip LED design optimized for visibility in specific mounting orientations
- Independent electrical characteristics for each color channel to allow flexible circuit control
Applications
- Status indication on electronic circuit boards requiring multi-state signaling
- Consumer electronics front panels needing compact dual-color feedback
- Industrial control interfaces utilizing discrete signal indicators
Procurement Notes
Verify the specific datasheet version when ordering, as manufacturing revisions may alter mechanical tolerances or electrical parameters slightly. Confirm that the 1210 package dimensions align with your PCB land pattern requirements. Ensure storage conditions respect the MSL 2A rating to prevent moisture-induced damage during reflow soldering processes.
Selection Notes
Select this component when space constraints preclude separate single-color LEDs but dual-status indication is required. The side-view orientation dictates panel thickness and viewing angle considerations. Compare the combined thermal dissipation against single-color alternatives if high-duty cycle operation is anticipated.
Part Context
This part belongs to Harvatek's SMD LED portfolio, specifically designed for applications demanding compact form factors. It differs from top-view variants by its emission angle and from single-color chips by its integrated dual-channel architecture. The 1210 size offers a balance between brightness output and board real estate efficiency.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints before attempting substitution with other dual-color 1210 LEDs.
