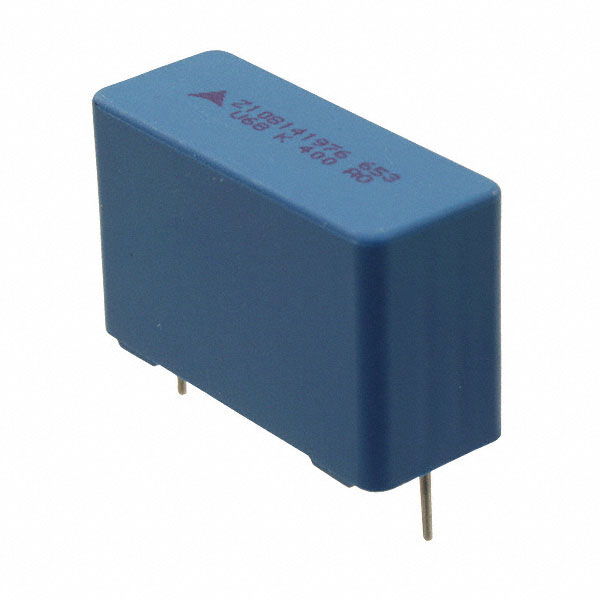

B32653A8682K000

B32653A8682K000 is listed in the Film Capacitors range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is CAP FILM 6800PF 10% 2KVDC RADIAL. Review the specifications below when checking this part for your BOM.

Film Capacitors specifications for B32653A8682K000

• Description：CAP FILM 6800PF 10% 2KVDC RADIAL
• Series：B3265* - MKP General Purpose
• Mfr：EPCOS - TDK Electronics
• Package：Bulk
• Capacitance：6800 pF
• Tolerance：±10%
• Voltage Rating - AC：1000V (1kV)
• Voltage Rating - DC：2000V (2kV)
• Dielectric Material：Polypropylene (PP), Metallized
• Operating Temperature：-55°C ~ 100°C
• Mounting Type：Through Hole
• Package / Case：Radial
• Size / Dimension：1.043" L x 0.413" W (26.50mm x 10.50mm)
• Height - Seated (Max)：0.650" (16.50mm)
• Termination：PC Pins
• Lead Spacing：0.886" (22.50mm)
• Applications：DC Link, DC Filtering; High Pulse, DV/DT
• Ratings：AEC-Q200
• Features：-
• ESR (Equivalent Series Resistance)：-

Film Capacitors datasheet and documents for B32653A8682K000
