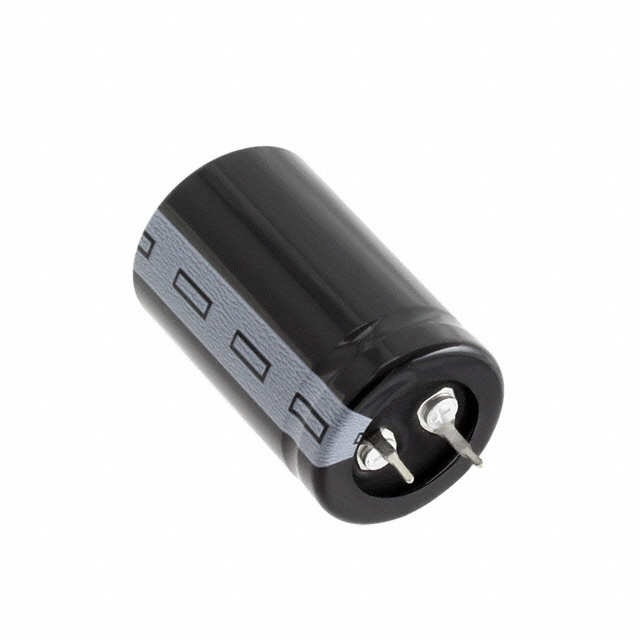

B43547A9687M000

B43547A9687M000 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists EPCOS - TDK Electronics. Its product description is CAP ALUM 680UF 20% 400V SNAP TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for B43547A9687M000

• Description：CAP ALUM 680UF 20% 400V SNAP TH
• Series：B43547
• Mfr：EPCOS - TDK Electronics
• Package：Tray
• Capacitance：680 µF
• Tolerance：±20%
• Voltage - Rated：400 V
• ESR (Equivalent Series Resistance)：75mOhm @ 100Hz
• Lifetime @ Temp.：8000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：3.49 A @ 100 Hz
• Ripple Current @ High Frequency：-
• Lead Spacing：0.394" (10.00mm)
• Size / Dimension：1.378" Dia (35.00mm)
• Height - Seated (Max)：2.244" (57.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can - Snap-In
• Impedance：110 mOhms
