BB-ACH2-DBAT-DP003

Antennas RF Overview

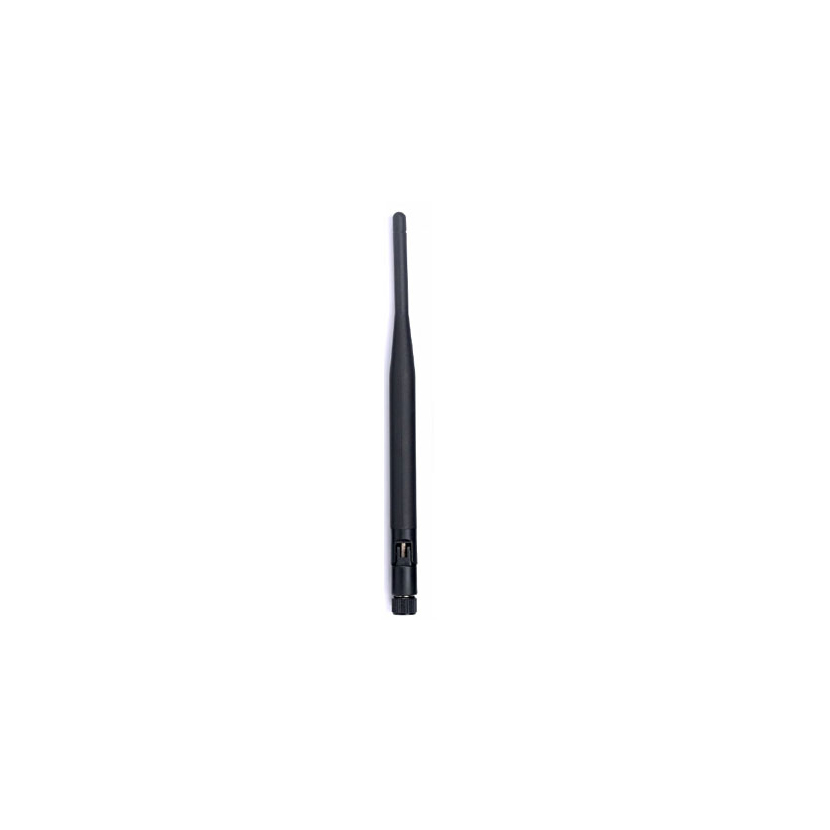

The Advantech BB-ACH2-DBAT-DP003 is a dual-band Wi-Fi antenna designed for wireless communication applications. It operates across the 2.4 GHz and 5.8 GHz frequency bands, providing versatile connectivity options for modern networking equipment. The component features a 5 dBi gain specification to enhance signal transmission efficiency. It utilizes an RP-SMA(M) type plug connector for secure attachment to compatible devices. The physical design includes an external, detachable structure with a hinge or tilt mechanism, allowing for flexible orientation adjustments to optimize signal reception in various installation environments.

Antennas RF Feature Summary

• Dual-band support for 2.4 GHz and 5.8 GHz Wi-Fi frequencies
• 5 dBi gain for improved signal performance
• RP-SMA(M) connector interface for standard compatibility
• External detachable design with hinge/tilt adjustability

Antennas RF Applications

• Replacement antenna for Advantech Airborne series devices
• Industrial wireless communication modules
• Remote I/O module connectivity
• IoT edge computing gateway installations

Antennas RF Procurement Notes

Verify that the replacement unit matches the original part number exactly to ensure compatibility with existing Advantech hardware. Confirm that the RP-SMA(M) connector type aligns with the device port specifications. Check for any specific firmware or driver requirements associated with the host device before installation. Ensure the operating temperature range meets the environmental conditions of the intended deployment site. Validate the mechanical dimensions and mounting style against the available space constraints in the equipment enclosure.

Antennas RF Selection Notes

Choose this model when a dual-band solution is required for both 2.4 GHz and 5.8 GHz networks. Select based on the need for a detachable antenna with adjustable positioning capabilities. Consider the 5 dBi gain specification for applications requiring extended range or better signal penetration. Ensure the RP-SMA(M) interface is supported by the target wireless card or module. Evaluate the external form factor against the physical layout of the industrial computer or gateway chassis.

Antennas RF Part Context

This antenna belongs to Advantech's portfolio of networking accessories and wireless components. It is specifically engineered to complement Advantech's industrial computing and IoT solutions. The product supports the company's focus on reliable and robust wireless connectivity for edge computing applications. It serves as a critical peripheral for maintaining stable data links in automated and remote monitoring systems.

Antennas RF Replacement Considerations

• BB-ACH2-DBAT-DP003

Antennas RF FAQ

What frequency bands does the BB-ACH2-DBAT-DP003 support?

It supports both 2.4 GHz and 5.8 GHz Wi-Fi frequency bands.

What type of connector is used for this antenna?

The antenna uses an RP-SMA(M) type plug connector.
