BB-AO-AGSM-MG9S

Antennas RF Overview

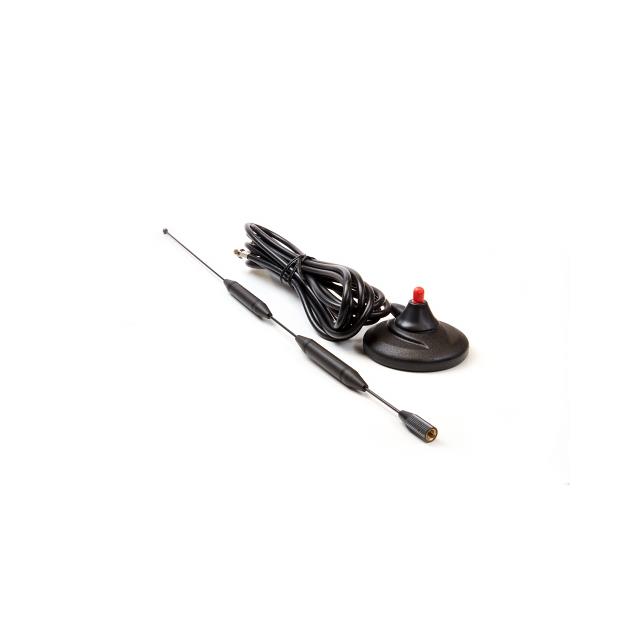

The Advantech BB-AO-AGSM-MG9S is a GSM/UMTS antenna designed for wireless communication applications. It features a magnetic mount form factor with an integrated 3.5-meter cable and an SMA male connector. The antenna provides a gain of 9dB and operates across quad-band frequencies. Key technical characteristics include low VSWR and high gain performance, ensuring reliable signal transmission. The unit has a diameter of 2.76 inches and is suitable for outdoor usage environments.

Antennas RF Feature Summary

• Magnetic mounting design for easy installation
• Low Voltage Standing Wave Ratio (VSWR) for efficient power transfer
• High gain capability to enhance signal reception
• Integrated 3.5-meter cable with SMA male connector

Antennas RF Applications

• Outdoor wireless communication setups
• Industrial IoT connectivity modules
• Vehicle-mounted telemetry systems
• Remote data acquisition stations

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against the system interface before ordering. Confirm that the magnetic base strength is sufficient for the intended mounting surface. Ensure compatibility with the operating frequency bands of the connected radio module. Check environmental ratings if the installation location exposes the antenna to extreme weather conditions or physical stress.

Antennas RF Selection Notes

Select this model when a fixed, high-gain solution is required for GSM and UMTS networks. The magnetic mount allows for temporary or semi-permanent placement without drilling. Consider the 3.5-meter cable length for routing flexibility between the antenna and the device. This antenna is appropriate for applications where signal integrity is critical and line-of-sight obstacles may be present.

Antennas RF Part Context

This component belongs to Advantech's industrial antenna portfolio, supporting cellular connectivity solutions. It complements embedded computing platforms and wireless communication modules used in automation and remote monitoring. The product is part of a broader ecosystem of hardware designed for robust industrial environments and reliable data transmission.

Antennas RF Replacement Considerations

The AO-AGSM-MG9F is listed as a related variant from B+B SmartWorx. Verify mechanical dimensions and electrical specifications before substitution. Ensure the replacement maintains the same connector polarity and impedance matching to avoid signal reflection issues in the existing assembly.
