BGLHPDLTEMIMO-SF-MM

Antennas RF Overview

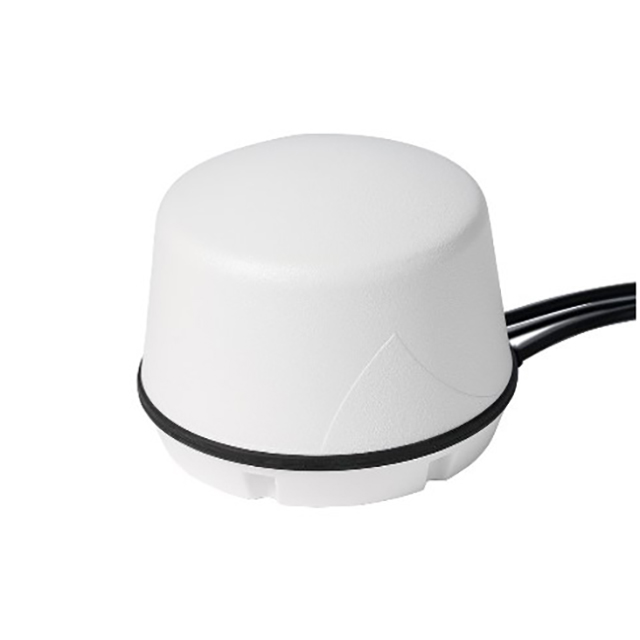

The BGLHPDLTEMIMO-SF-MM is a multi-protocol RF antenna module from the GLHPDLTE-MM series by Amphenol PCTEL. It supports frequencies at 789MHz, 1.5865GHz, 2.205GHz, 2.45GHz, and 5.4GHz. The unit provides gains of 2.5dBi, 3dBic, -2dBic, and 4dBi across its bands. It features an IP67 rating and a maximum power handling of 50 W. The antenna utilizes RP-SMA and SMA connectors with magnetic mounting.

Antennas RF Feature Summary

• Supports multiple cellular, GNSS, and Wi-Fi protocols in a single housing
• Includes integrated cable for flexible installation
• Provides high ingress protection for outdoor environments

Antennas RF Applications

• Public Safety Ambulance
• Intelligent Transportation Systems (ITS)
• LTE and Wi-Fi connectivity

Antennas RF Procurement Notes

Verify the specific connector configuration and cable length requirements against the official datasheet before ordering. Confirm that the magnetic mounting base is suitable for the intended vehicle or surface material. Ensure the operating frequency bands align with local regulatory standards and network infrastructure specifications.

Antennas RF Selection Notes

Select this model when a compact, magnetically mounted solution is required for simultaneous LTE, GNSS, and Wi-Fi operations. The IP67 rating makes it appropriate for harsh outdoor conditions. Consider the integrated cable length and connector types to ensure compatibility with existing device interfaces.

Antennas RF Part Context

This component belongs to the GLHPDLTE-MM series, designed for mobile applications such as ambulances and ITS vehicles. It consolidates multiple radio functions into one low-profile dome antenna. The series is engineered to provide reliable signal reception for critical communication and navigation systems in moving platforms.

Antennas RF Replacement Considerations

The GLHPDLTEMIMO-SF-MM is listed as an alias for this part number. Verify mechanical dimensions and connector polarity when substituting with other models in the GLHPDLTE family.
