BHS-130-G-B

Headers, Male Pins Overview

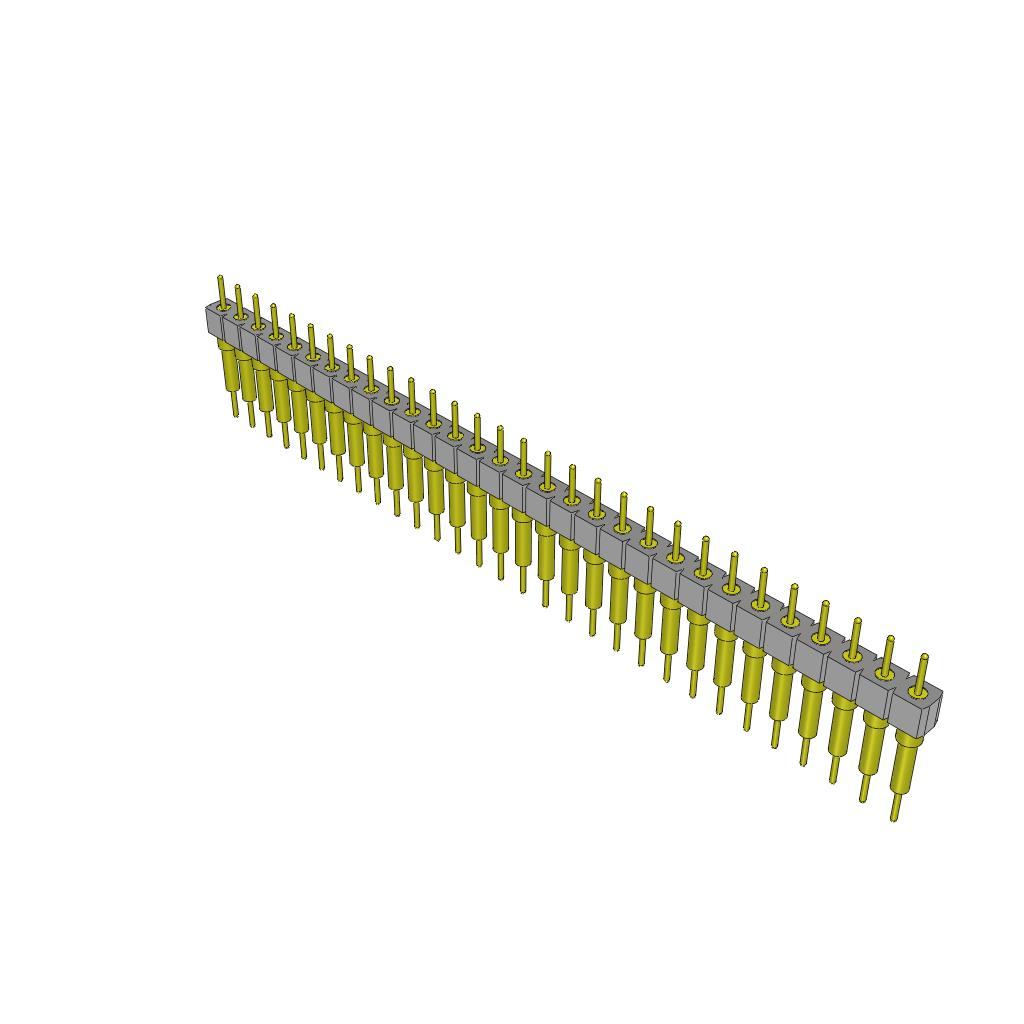

The BHS-130-G-B is a high-temperature single-row header manufactured by Samtec Inc., designed for through-hole board-to-board applications. It features 30 male pin contacts with a 0.100-inch (2.54mm) pitch. The connector utilizes a push-pull locking mechanism and gold-plated phosphor bronze contacts. Constructed with black liquid crystal polymer (LCP) insulation reinforced with glass fiber, it supports an operating temperature range of -55°C to +125°C. This component is part of the BHS series, offering reliable interconnection in demanding thermal environments.

Headers, Male Pins Feature Summary

• High-temperature capability using LCP insulation for stable performance
• Push-pull locking mechanism ensures secure mating engagement
• Gold-plated contacts provide durable electrical connectivity
• Single-row design facilitates compact board stacking

Headers, Male Pins Applications

• Board stacking interconnections
• High-temperature electronic assemblies
• Industrial control systems requiring robust headers

Headers, Male Pins Procurement Notes

Verify the specific contact count and series designation against official Samtec documentation before integration. Confirm that the push-pull locking style matches the mechanical constraints of the target assembly. Ensure compliance with RoHS3 standards if required by the project specifications. Cross-reference the datasheet for precise dimensional tolerances and mating partner requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row, high-temperature header with a 0.100-inch pitch is required. The BHS series is suitable for applications needing a push-pull locking feature to prevent accidental disengagement. Consider the 30-position configuration for dense vertical interconnects. Verify that the through-hole termination method aligns with the PCB manufacturing capabilities.

Headers, Male Pins Part Context

The BHS-130-G-B belongs to Samtec's BHS series, which specializes in .100" high-temperature single-row screw machine headers. These connectors are engineered for reliability in elevated thermal conditions. The series offers various position counts while maintaining consistent mechanical and electrical characteristics across the lineup.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include BHS-130-G-A or BHS-130-T-B, differing primarily in contact plating or material composition. Verify that any alternative maintains the same pitch, row count, and locking mechanism to ensure mechanical compatibility.
