BKT-117-01-L-V-S-P-TR

Headers, Male Pins Overview

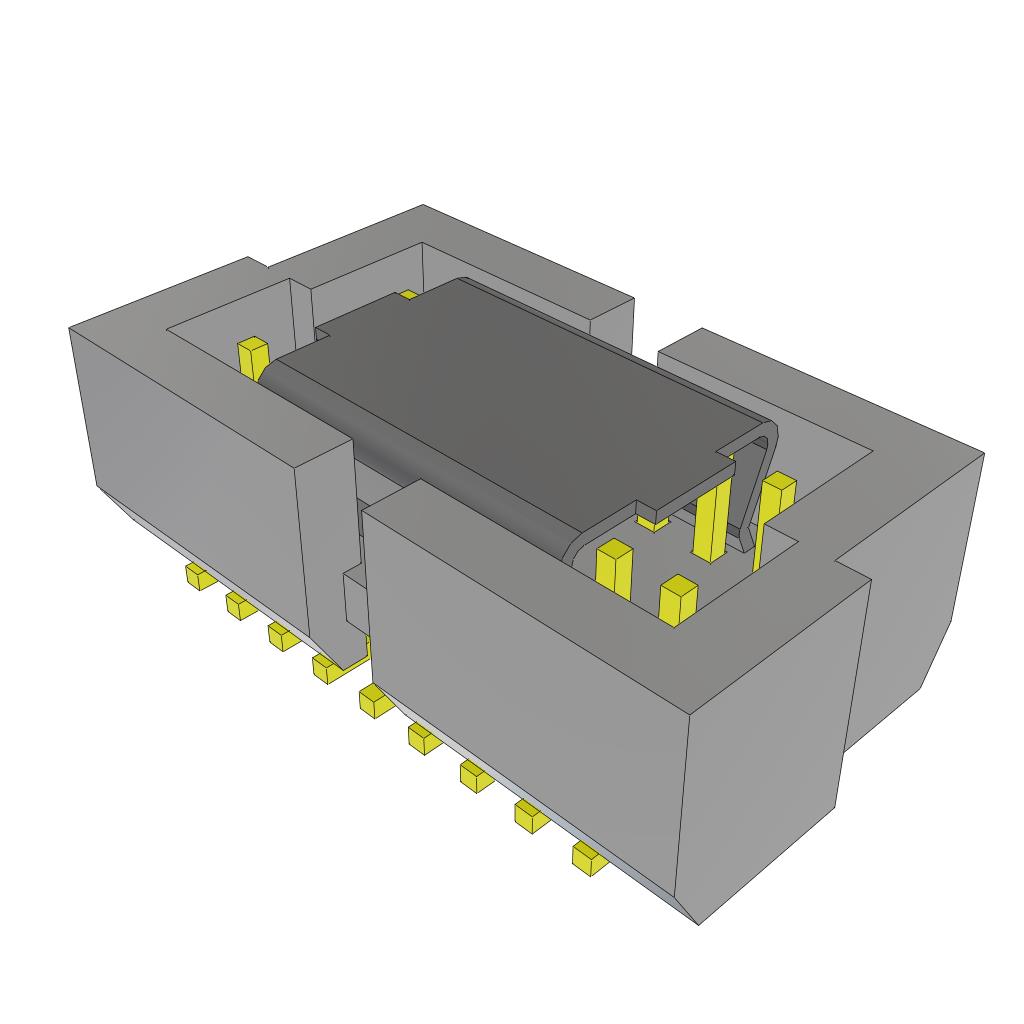

The BKT-117-01-L-V-S-P-TR is a board connector manufactured by Samtec Inc. It features 17 contacts arranged in two rows with male, square pin sockets. The connector utilizes a 1.00 mm (.0394 inch) pitch and is designed for surface mount installation. Key specifications include phosphor bronze contact material, liquid crystal polymer (LCP) insulator, and gold flash over nickel plating on the mating interface. The component supports pick-and-place assembly and locking functionality.

Headers, Male Pins Feature Summary

• Surface mount terminal configuration optimized for automated pick-and-place manufacturing processes
• Locking mechanism integrated into the design to secure the connection during operation
• Compatible mating interface provided by the BKS series of 1.00 mm pitch socket strips

Headers, Male Pins Applications

• High-density board-to-board interconnections requiring precise alignment
• Automated surface mount technology (SMT) production lines
• Electronic assemblies utilizing standard 1.00 mm pitch stacking heights

Headers, Male Pins Procurement Notes

Verify that the specific suffixes correspond to the required tape and reel packaging format for automated insertion. Confirm that the L-version indicates the appropriate low-cost gold plating option for the application environment. Ensure the locking feature aligns with the mechanical retention requirements of the target assembly.

Headers, Male Pins Selection Notes

Select this component when a 1.00 mm pitch male connector with surface mount termination is required. The choice depends on matching the contact count and row configuration against the corresponding BKS series receptacle. Consider the available stack height options and the necessity for a locking clip in the final design.

Headers, Male Pins Part Context

This part belongs to the BKT series of 1mm pitch top-entry pin strip connectors. It is specifically engineered as a male header to mate with the BKS series female socket strips. The product line offers various body lengths and stacking heights to accommodate different PCB layer configurations.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same family include variations in body length or plating thickness, such as BKT-117-01-F-V-S-P-TR. Any replacement must maintain the 1.00 mm pitch and compatible mating geometry with the BKS series.
