BMLPVDB800/1900S

Antennas RF Overview

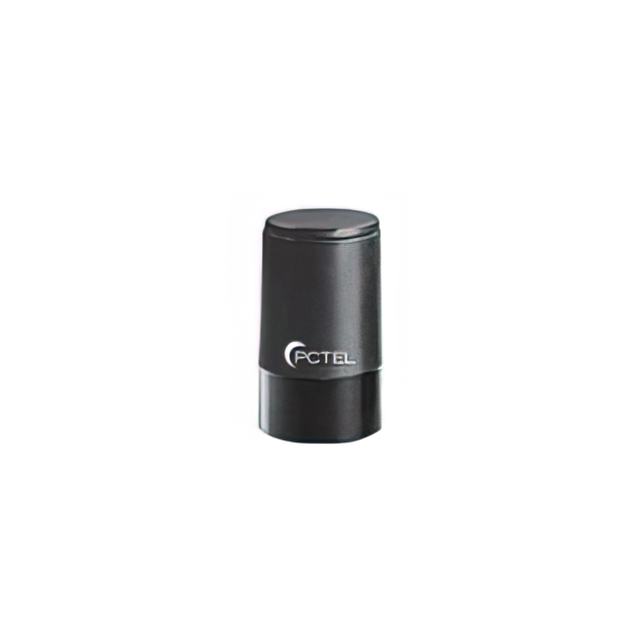

The BMLPVDB800/1900S is a low-profile dual-band dome antenna manufactured by Amphenol PCTEL. It operates within the frequency ranges of 806-960 MHz and 1710-1990 MHz, providing vertical polarization for cellular, PCS, and Wi-Fi applications. The unit features an N female connector and maintains a 50 Ohm impedance with a VSWR of 2.0:1. Designed for robust performance, it supports up to 100 W power rating and functions reliably between -40°C and +85°C. This MLPV series component ensures superior pattern coverage for fixed or mobile permanent installations requiring minimal visual impact.

Antennas RF Feature Summary

• Low-profile dome design suitable for discreet installation in fixed or mobile environments
• Dual-band capability covering cellular, PCS, and Wi-Fi frequency spectrums
• Vertical polarization with industry-leading wideband pattern coverage

Antennas RF Applications

• Mobile radio communication systems
• Fixed permanent cellular infrastructure
• PCS network deployment
• Wi-Fi connectivity solutions

Antennas RF Procurement Notes

Verify the exact suffix designation when ordering, as variants such as BMLPVDB800/1900 exist with potentially different specifications. Confirm connector type and mounting requirements align with system needs. Check current product status and lead times directly with authorized distributors. Ensure environmental ratings meet operational temperature requirements. Cross-reference part numbers to avoid confusion between similar MLPV series models.

Antennas RF Selection Notes

Select this model for applications requiring a low-visibility antenna solution that supports multiple wireless protocols. The dual-band design simplifies integration by combining cellular and PCS frequencies into a single unit. Consider the dome mounting style for vehicles or structures where traditional mast mounts are impractical. Verify compatibility with existing N-type connectors and ensure sufficient clearance for the dome profile during installation planning.

Antennas RF Part Context

This component belongs to the MLPV series from Amphenol PCTEL, known for providing superior pattern coverage across various RF applications. The series spans frequencies from 380 MHz to 6 GHz, offering versatile solutions for both mobile and fixed scenarios. As a sealed low-profile antenna, it addresses aesthetic and aerodynamic constraints while maintaining reliable signal transmission capabilities for modern communication networks.

Antennas RF Replacement Considerations

The BMLPVDB800/1900 serves as a variant within the broader MLPV family. Direct substitutes may include other low-profile dual-band antennas from the same manufacturer if specific frequency overlaps exist. Always verify mechanical dimensions and connector types before swapping components to ensure physical compatibility and electrical continuity without redesigning the mounting structure.
