BMLPVMBLTENGP

Antennas RF Overview

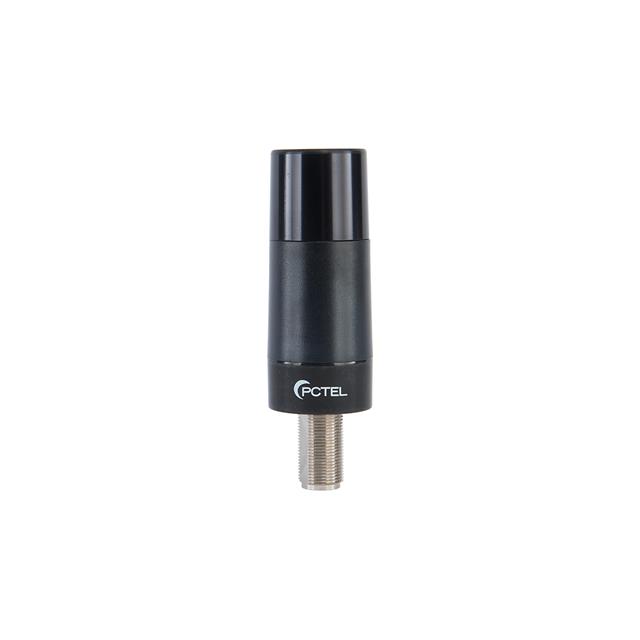

The BMLPVMBLTENGP is a low-profile, ground-plane-independent antenna manufactured by Amphenol PCTEL. It operates within the 698-2700 MHz frequency range, covering 2G, 3G, 4G LTE, 5G, Bluetooth, Wi-Fi, and ISM bands. The unit features an average gain of 3 dBi and utilizes an N-Type connector for mounting. Designed for mobile and fixed applications, it provides superior pattern coverage without requiring a metallic ground plane.

Antennas RF Feature Summary

• Ground-plane independent design eliminates the need for metallic mounting surfaces
• Low-profile construction suitable for space-constrained mobile and fixed installations
• Omni-directional radiation pattern ensures consistent signal coverage

Antennas RF Applications

• Mobile devices operating on 4G LTE frequencies
• Fixed wireless access points in urban environments
• IoT gateways supporting multi-band cellular connectivity
• Industrial equipment requiring reliable RF links without ground planes

Antennas RF Procurement Notes

Verify that the specific order matches the BMLPVMBLTENGP designation to ensure correct frequency coverage and connector type. Confirm compatibility with N-Type interfaces during integration. Request official datasheets from Amphenol PCTEL or authorized distributors to validate performance specifications against project requirements before finalizing procurement.

Antennas RF Selection Notes

Select this model when a compact antenna solution is required that does not depend on a chassis ground plane for optimal performance. It is appropriate for applications needing broad band coverage across multiple cellular and wireless standards. Ensure sufficient clearance around the mounting area to maintain the intended omni-directional radiation pattern.

Antennas RF Part Context

This component belongs to the MLPV series of low-profile antennas from Amphenol PCTEL. These antennas are engineered for modern wireless systems where traditional ground-dependent designs are impractical. The series supports various mounting options including connector mount, stud, and through-hole configurations for flexible system integration.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. When replacing, verify that alternative antennas match the 698-2700 MHz frequency range, N-Type interface, and ground-plane independence requirements to maintain system performance.
