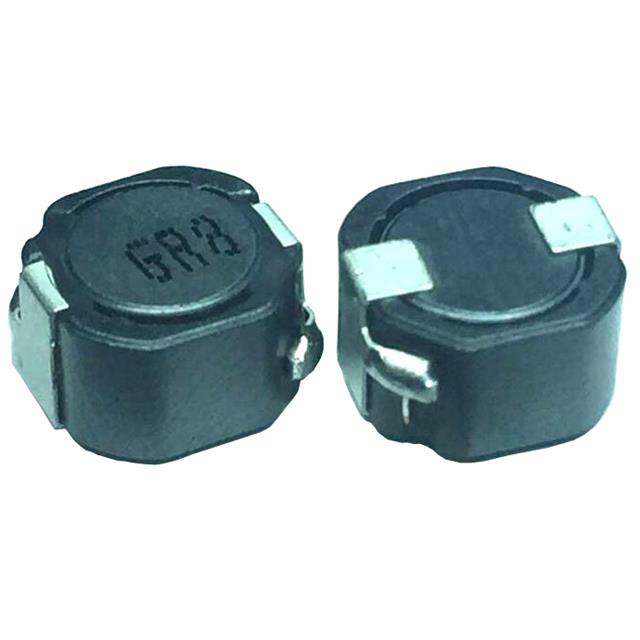

BPCA00060645150M00

$0.41

Description：INDUCTOR POWER
Series：BPCA
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:4a2c7b74fe41 Category: Fixed Inductors Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

BPCA00060645150M00 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is INDUCTOR POWER. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for BPCA00060645150M00

Description：INDUCTOR POWER
Series：BPCA
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Type：-
Material - Core：Ferrite
Inductance：15 µH
Tolerance：±20%
Current Rating (Amps)：2:00 AM
Current - Saturation (Isat)：1.4A
Shielding：Shielded
DC Resistance (DCR)：72mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 105°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.248" L x 0.236" W (6.30mm x 6.00mm)
Height - Seated (Max)：0.193" (4.90mm)
Features：-

Fixed Inductors datasheet and documents for BPCA00060645150M00

BPCA00060645150M00

Fixed Inductors Overview

The BPCA00060645150M00 is a surface-mount power inductor manufactured by Pulse Electronics. It belongs to the Chilisin Power series and features a shielded ferrite core design. The component has an inductance of 15 uH with a tolerance of 20%. It supports a maximum DC current of 1.5 A and a saturation current of 1.5 A. The maximum DC resistance is specified at 125 mOhms. The physical dimensions are 6 mm x 6 mm x 4.5 mm, suitable for PCB mounting.

Fixed Inductors Feature Summary

Shielded construction utilizing a ferrite core to minimize electromagnetic interference
Designed for high-current applications within compact surface-mount footprints
Supports standard SMD/SMT assembly processes on printed circuit boards

Fixed Inductors Applications

Power supply circuits requiring shielded inductance
DC-DC converter modules
General-purpose power filtering applications

Fixed Inductors Procurement Notes

Verify the specific manufacturer part number against official Pulse Electronics documentation to confirm electrical parameters and mechanical dimensions. Ensure that the ordering suffix matches the required packaging configuration. Cross-reference with authorized distributors to validate current availability status and compliance certifications prior to procurement.

Fixed Inductors Selection Notes

Select this component when a shielded power inductor with a 15 uH nominal value is required. Consider the 1.5 A current rating and 125 mOhm resistance for thermal management. The 6x6 mm footprint dictates available board space. Confirm operating temperature range requirements align with the component specifications.

Fixed Inductors Part Context

This part is categorized under Power Inductors - SMD within the broader Inductors, Chokes & Coils subcategory. It is part of the Chilisin Power product line, which focuses on shielded types. The manufacturer identifies it as a specialized component for power electronics applications requiring reliable magnetic shielding.
