BTPA0061204G0C4A03

Antennas RF Overview

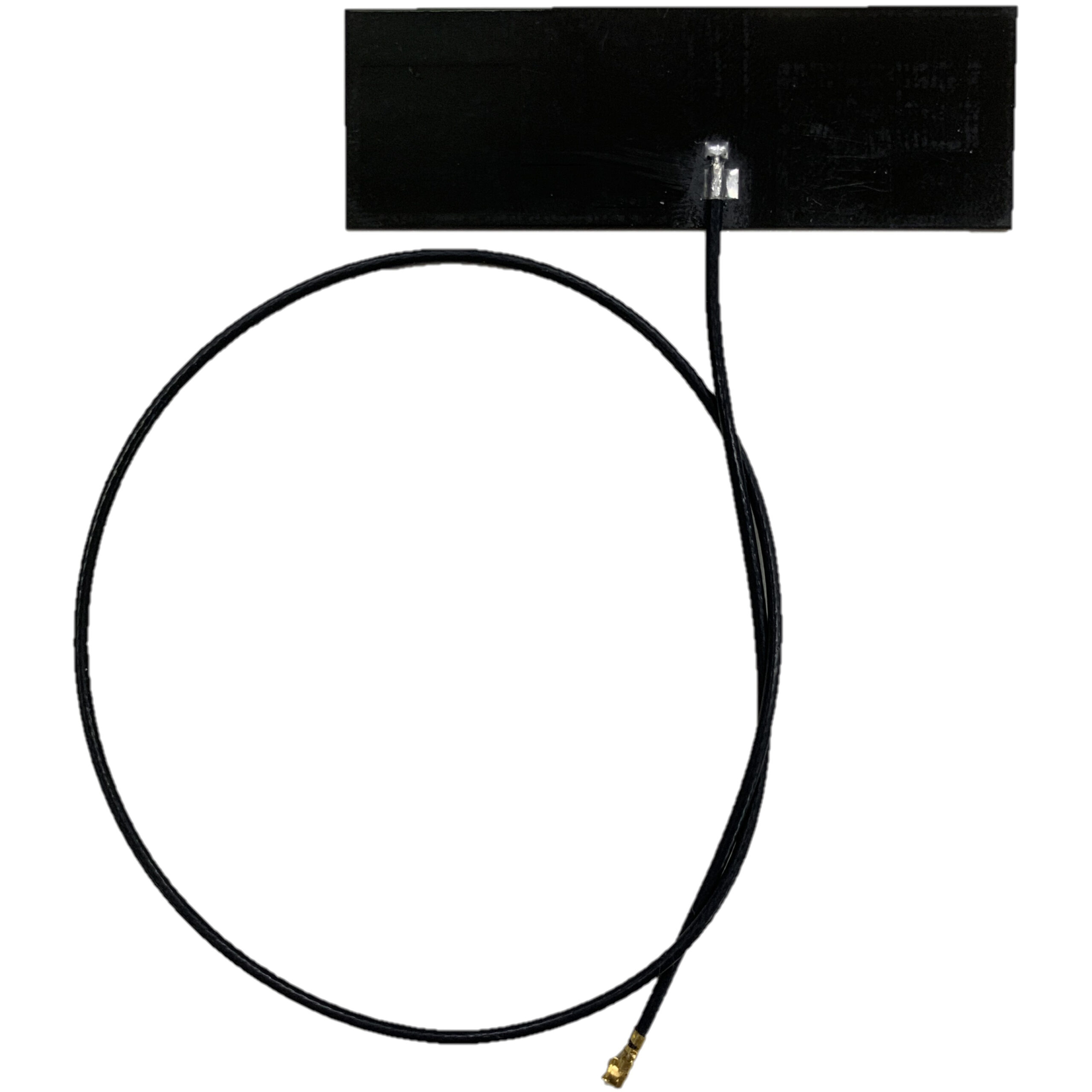

The BTPA0061204G0C4A03 is a flat patch RF antenna manufactured by Pulse Electronics, designed for 4G LTE, LTE Cat M1, and NB-IoT applications. It operates within frequency bands of 698 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, and 2.3 GHz to 2.7 GHz. The component features linear polarization and includes a 200 mm cable length. It utilizes an I-PEX connector interface and employs an adhesive mount method for installation.

Antennas RF Feature Summary

• Supports multiple cellular standards including 4G LTE, LTE Cat M1, and NB-IoT
• Utilizes a flat patch design with adhesive mounting for secure attachment
• Features a 200 mm cable length with I-PEX connector interface

Antennas RF Applications

• IoT device connectivity
• LTE Cat M1 module integration
• NB-IoT network deployment

Antennas RF Procurement Notes

Verify the specific I-PEX connector type and adhesive backing specifications against the official datasheet before integration. Confirm that the operating frequency ranges align precisely with the target network requirements for 4G LTE, LTE Cat M1, or NB-IoT deployments to ensure optimal signal performance.

Antennas RF Selection Notes

Select this model when a low-profile flat patch antenna is required for IoT applications supporting LTE Cat M1 and NB-IoT. The 200 mm cable length provides flexibility for internal routing, while the adhesive mount simplifies assembly compared to screw-mount alternatives.

Antennas RF Part Context

This component belongs to Pulse Electronics' portfolio of wireless components, which includes antennas and magnetic elements. Pulse Electronics specializes in providing comprehensive electronic solutions for telecommunications and consumer electronics markets.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official distributor channels for cross-reference data if alternative sourcing is required.
