CDSU101A-HF

Single Diodes Overview

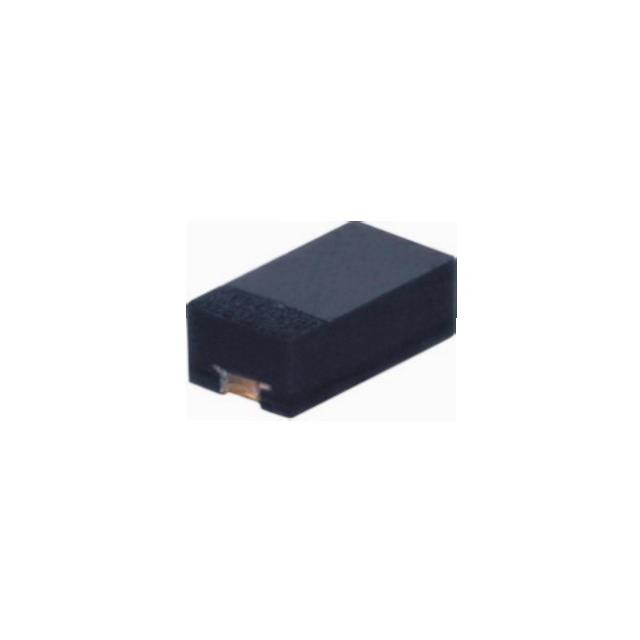

The CDSU101A-HF is a small signal switching diode manufactured by Comchip Technology. It features an 80V repetitive peak reverse voltage and a 100mA average forward current rating. The device utilizes a surface-mount package designed for compact circuit board mounting. Key electrical characteristics include low leakage current and high-speed switching capabilities, making it suitable for general-purpose rectification and signal processing applications in electronic systems.

Single Diodes Feature Summary

• High-speed switching performance optimized for rapid signal transitions
• Low leakage current operation to minimize power loss
• Extremely thin leadless package design for space-constrained layouts
• Robust surge withstand capability ensuring high reliability

Single Diodes Applications

• General-purpose rectification circuits
• Signal processing and clamping applications
• High-speed switching logic interfaces

Single Diodes Procurement Notes

Verify the specific part number CDSU101A-HF against official manufacturer documentation to confirm electrical ratings and package dimensions. Ensure compliance with RoHS directives as indicated in product specifications. Cross-reference datasheet parameters such as reverse voltage and forward current with system requirements before procurement to guarantee functional compatibility.

Single Diodes Selection Notes

Select this component when a compact surface-mount switching diode with moderate voltage ratings is required. Consider its low leakage and high-speed attributes for efficient signal handling. Evaluate the physical package constraints against available PCB real estate. Confirm thermal management needs align with the device's power dissipation limits under expected operating conditions.

Single Diodes Part Context

This component belongs to the family of small signal switching diodes produced by Comchip Technology. These devices are engineered for efficiency in low-power electronic applications. The series emphasizes miniaturization through specialized packaging solutions while maintaining reliable electrical performance standards for modern consumer and industrial electronics manufacturing processes.
