CFD69383P-B30NF

Antennas RF Overview

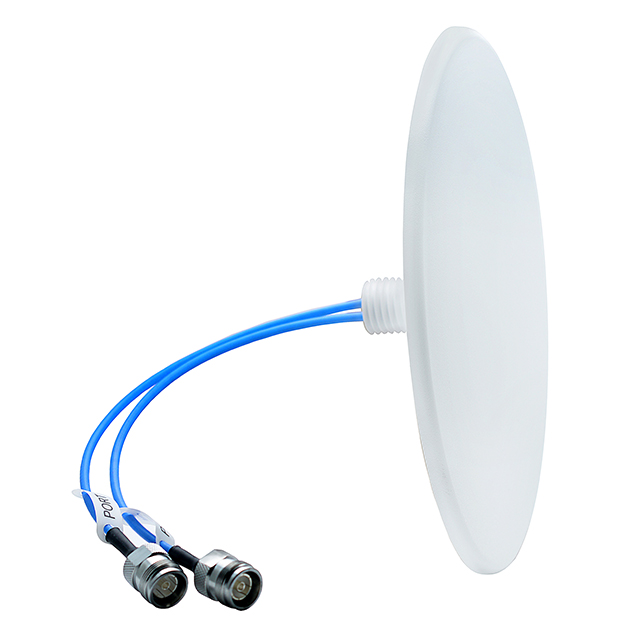

The TE Connectivity CFD69383P-B30NF is a multi-band MIMO antenna designed for indoor and outdoor environments. It operates across three frequency bands: 698MHz to 960MHz, 1.35GHz to 1.55GHz, and 1.69GHz to 4GHz. The unit features an omni-directional pattern with a gain of approximately 6dBi and supports up to 50W power rating. It utilizes a 4.3-10 female connector and is rated for operation between -30°C and +70°C.

Antennas RF Feature Summary

• Supports multiple wireless protocols including LTE, WiMAX, and WiFi
• Designed for both indoor and outdoor deployment scenarios
• Features omni-directional radiation pattern for broad coverage

Antennas RF Applications

• AWS-3 network infrastructure
• CBRS/WiMAX deployments
• LTE cellular systems
• WCS applications

Antennas RF Procurement Notes

Verify the specific connector type required for your installation, as datasheets indicate variations such as N-type or 4.3-10 female connectors for similar model numbers. Confirm that the operating temperature range meets your environmental requirements. Ensure compatibility with existing cabling and mounting hardware before finalizing procurement orders.

Antennas RF Selection Notes

Select this component when a multi-band solution covering lower cellular frequencies through upper microwave bands is required. Consider the omni-directional nature for general coverage needs rather than directional focus. Evaluate the ceiling mount style against available structural support options in the intended installation area.

Antennas RF Part Context

This part belongs to the CFD series of multi-protocol antennas from TE Connectivity. It is engineered to handle diverse communication standards within a single compact module. The design integrates multiple frequency bands to reduce the need for separate antenna installations in complex RF environments.

Antennas RF Replacement Considerations

CFSA69383P-30NF is a related flat panel variant but differs in form factor and connector type. Verify mechanical dimensions and interface compatibility before substitution. Other models in the CFD family may offer different cable lengths or connector styles.
