CFSA69383P-30NF

Antennas RF Overview

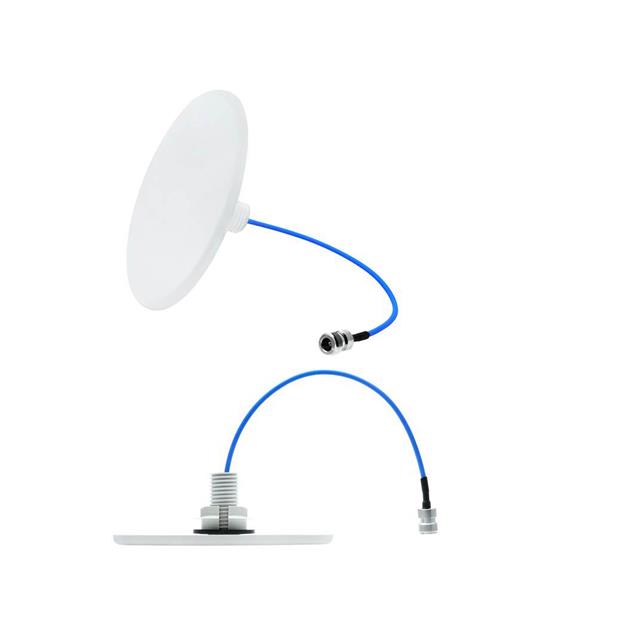

The TE Connectivity CFSA69383P-30NF is a flat panel RF antenna designed for wideband cellular applications. It operates across three frequency bands: 698MHz to 960MHz, 1.35GHz to 1.55GHz, and 1.69GHz to 3.8GHz. The unit provides a gain of 5.8dBi with a maximum VSWR of 2 and supports up to 50W of power. It features an N-type female connector and utilizes panel mounting. The antenna covers GSM, LTE, and WiMax protocols.

Antennas RF Feature Summary

• Supports three distinct wideband frequency ranges for multi-standard cellular communication
• Flat panel form factor with low profile design suitable for discrete installation
• Integrated 30cm cable termination with N-type female connector for direct equipment interfacing

Antennas RF Applications

• GSM network infrastructure deployment
• LTE signal distribution systems
• WiMax broadband access points

Antennas RF Procurement Notes

Verify the specific ordering suffix to confirm connector type and cable length specifications. Ensure the selected variant matches the required interface standard for the target system integration. Cross-reference the manufacturer part number against official TE Connectivity documentation to confirm current production status and availability before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a flat panel antenna is required for wideband cellular coverage. Confirm that the N-type female interface aligns with existing cabling infrastructure. Verify that the 5.8dBi gain meets the link budget requirements for the intended coverage area. Ensure the physical dimensions fit the available mounting space constraints.

Antennas RF Part Context

This component belongs to the CFSA series of antennas from TE Connectivity. The series includes various configurations optimized for different mounting styles and frequency requirements. This specific model focuses on wideband performance for indoor or outdoor distributed antenna systems requiring flat panel aesthetics.

Antennas RF Replacement Considerations

CFSA69383P-30D43F offers similar wideband performance but utilizes a 4.3/10 female connector instead of N-type. CFD69383P1-B30D43F provides comparable functionality with a 4.3/10 interface. Verify connector compatibility when considering these alternatives.
