CGGP.35.3.A.02

Antennas RF Overview

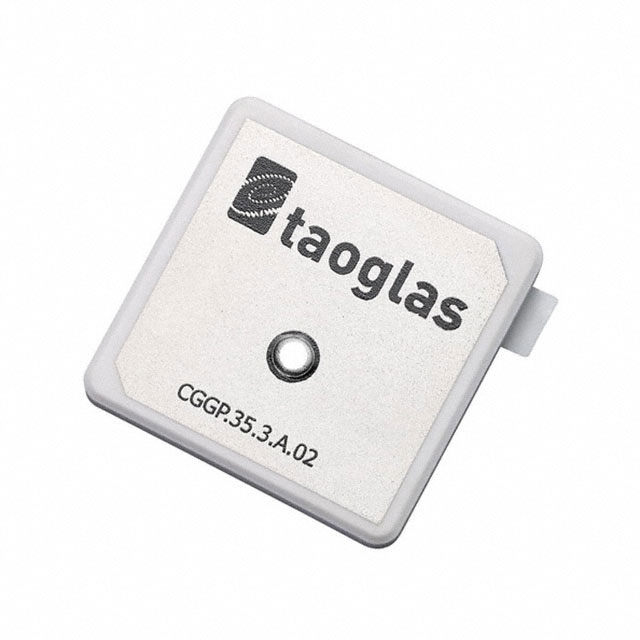

The CGGP.35.3.A.02 is a passive ceramic patch antenna manufactured by Taoglas Limited, designed for Global Navigation Satellite System (GNSS) applications. It supports GPS, GLONASS, Galileo, and BeiDou constellations with dual-band operation centered around the L1 frequency range of 1.564GHz to 1.613GHz. The component features a compact physical footprint measuring 35mm x 35mm with a low profile height of 3.5mm. It utilizes a double resonance design to achieve wide-band operation across the specified GNSS bands. The antenna employs an adhesive mounting type for secure integration into embedded systems.

Antennas RF Feature Summary

• Supports multiple global satellite navigation systems including GPS, GLONASS, Galileo, and BeiDou
• Features a double resonance design enabling wide-band operation across operating frequencies
• Utilizes a compact ceramic patch construction with a low-profile form factor

Antennas RF Applications

• Embedded GNSS receiver modules requiring multi-constellation support
• Navigation devices utilizing GPS, GLONASS, Galileo, or BeiDou signals
• IoT hardware integrating location tracking capabilities

Antennas RF Procurement Notes

Verify the specific part number suffix against official Taoglas documentation to ensure correct configuration. Confirm that the adhesive mounting method aligns with your assembly process requirements. Check for RoHS compliance status and REACH SVHC declarations in the latest datasheet version before procurement.

Antennas RF Selection Notes

Select this component when a low-profile, multi-band GNSS solution is required for embedded designs. The 35mm square footprint suits space-constrained applications. Ensure the host PCB layout accommodates the adhesive mounting style rather than through-hole or surface-mount soldering techniques typical of other antenna types.

Antennas RF Part Context

This model belongs to the CGGP.35 series of ceramic patch antennas from Taoglas. These components are engineered for high-performance GNSS reception in compact electronic devices. The series emphasizes wide-band coverage and multi-constellation compatibility within a standardized 35mm x 35mm package size.

Antennas RF Replacement Considerations

Consult official Taoglas substitution guides for compatible alternatives. Verify that any replacement maintains the same 35mm x 35mm dimensions and 3.5mm height to ensure mechanical fit.
