CMD69273P-30D43F

Antennas RF Overview

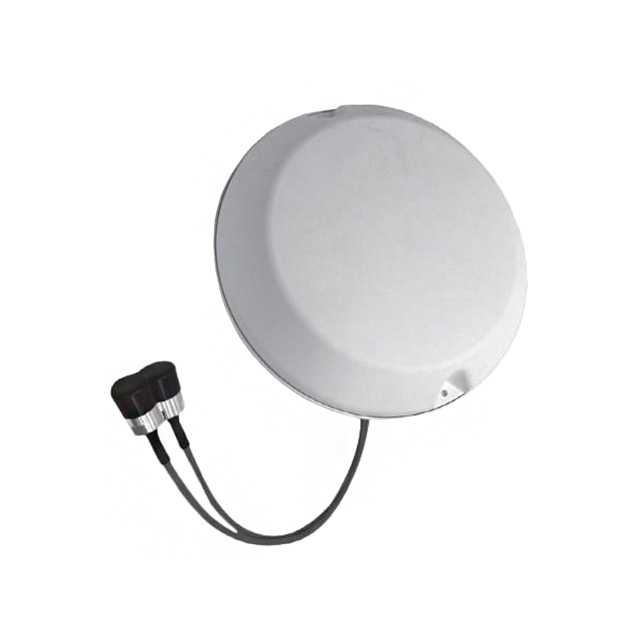

The TE Connectivity CMD69273P-30D43F is a broadband two-port MIMO omnidirectional antenna designed for ceiling mounting. It operates across the 698 MHz to 2.7 GHz frequency range, covering AWS-3, CBRS/WiMAX, LTE, and WCS bands. The unit features a 30 cm cable length with 4.3-10 female connectors. Technical specifications include a maximum input power of 50 W, an impedance of 50 Ohms, and a VSWR of 1.5:1. Peak gain varies by band, reaching up to 6.9 dBi. The device supports linear vertical polarization and functions within a temperature range of -30°C to +70°C.

Antennas RF Feature Summary

• Dual-port MIMO architecture providing optimized pattern coverage for indoor distributed antenna systems
• Broadband omni-directional radiation pattern supporting multiple wireless communication standards
• Low passive intermodulation (PIM) characteristics suitable for high-density network environments

Antennas RF Applications

• AWS-3 band coverage
• CBRS and WiMAX networks
• LTE infrastructure deployment
• WCS applications

Antennas RF Procurement Notes

Verify that the specific order matches the CMD69273P-30D43F designation to ensure correct frequency coverage and connector type. Confirm that the required installation environment falls within the specified operating temperature limits. Ensure that the cabling infrastructure utilizes compatible 4.3-10 female interfaces. Cross-reference the manufacturer datasheet for precise mechanical dimensions and weight requirements prior to procurement.

Antennas RF Selection Notes

Select this model when a dual-port solution is required for combined low-band and mid-band spectrum utilization. This antenna is appropriate for installations requiring ceiling-mounted omnidirectional coverage with minimal signal distortion. Consider the 30 cm fixed cable length during system design to determine optimal placement relative to radio units. Verify that the target application supports the linear vertical polarization characteristic inherent to this component.

Antennas RF Part Context

This component belongs to the CMD series of ultra-low-profile antennas manufactured by TE Connectivity. The series includes variants such as the CFD69383P and CMD69273P-B30D43F, which share similar form factors but differ in specific frequency ranges and mounting configurations. The CMD series is engineered specifically for indoor distributed antenna systems requiring compact, high-performance RF solutions.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
