CMSA69273P-B30NF

Antennas RF Overview

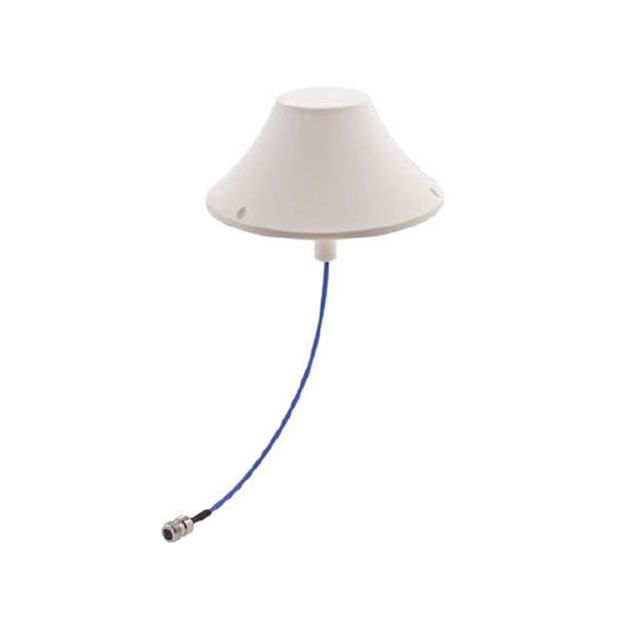

The CMSA69273P-B30NF is a multiprotocol omnidirectional antenna from the TE Connectivity CMSA series, designed for distributed antenna systems. It operates within a frequency range of 698 MHz to 2.7 GHz. The unit features an N-type female connector and includes three ports with passive intermodulation (PIM) specifications. A 30 cm cable length is integrated into the assembly.

Antennas RF Feature Summary

• Supports multiple wireless protocols across the D-band spectrum
• Omnidirectional radiation pattern suitable for broad coverage applications
• Integrated N-type female connector for secure RF interfacing
• Engineered for low passive intermodulation performance in dense signal environments

Antennas RF Applications

• Distributed Antenna Systems (DAS)
• Indoor cellular coverage expansion
• Multi-operator network infrastructure deployment

Antennas RF Procurement Notes

Verify the specific suffix B30NF against official TE Connectivity documentation to confirm the 30 cm cable length and N-type female termination. Ensure compatibility with existing connector types and frequency requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Antennas RF Selection Notes

Select this model when multi-protocol support across 698 MHz to 2.7 GHz is required. The N-type female interface dictates mating connector choices. Consider the 30 cm fixed cable length during installation planning. Verify PIM class requirements align with system specifications for high-density deployments.

Antennas RF Part Context

This component belongs to the CMD/CMSA family of external antennas by TE Connectivity. These units are engineered for commercial and industrial RF distribution. The CMSA variant typically denotes specific cabling or connector configurations within the broader product line.

Antennas RF Replacement Considerations

Consult TE Connectivity for direct cross-references. Generic replacements may lack identical PIM characteristics or exact frequency coverage. Verify mechanical mounting and connector gender compatibility before substitution.
