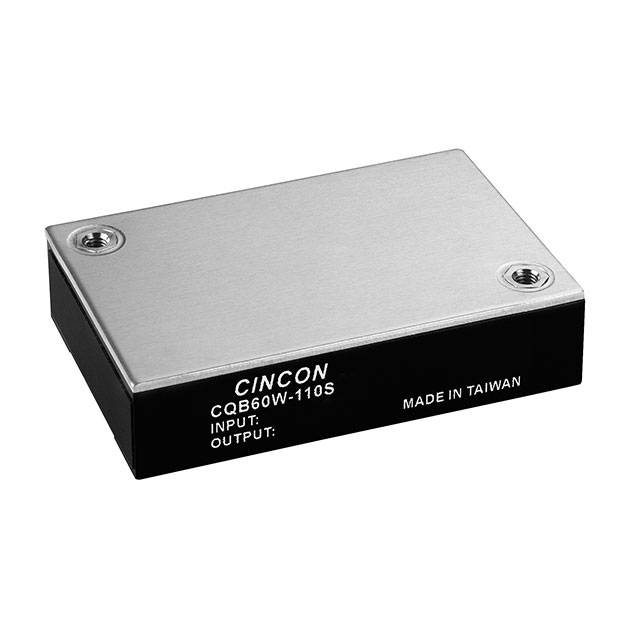

CQB60W-110S24

CQB60W-110S24 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Cincon Electronics Co. LTD. Its product description is DC DC CONVERTER 24V 60W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for CQB60W-110S24

• Description：DC DC CONVERTER 24V 60W
• Series：CQB60W-110S (60W)
• Mfr：Cincon Electronics Co. LTD
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：43V
• Voltage - Input (Max)：160V
• Voltage - Output 1：24V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.5A
• Power (Watts)：60 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial), Railway
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：90%
• Mounting Type：Through Hole
• Package / Case：Module
• Size / Dimension：2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
• Supplier Device Package：Module
• Control Features：Enable, Active High
• Approval Agency：CB, CE, cURus
• Standard Number：50155; 60950-1
• Grade：-
• Qualification：-
