CS325-20.500MABJ-UT

Crystals Overview

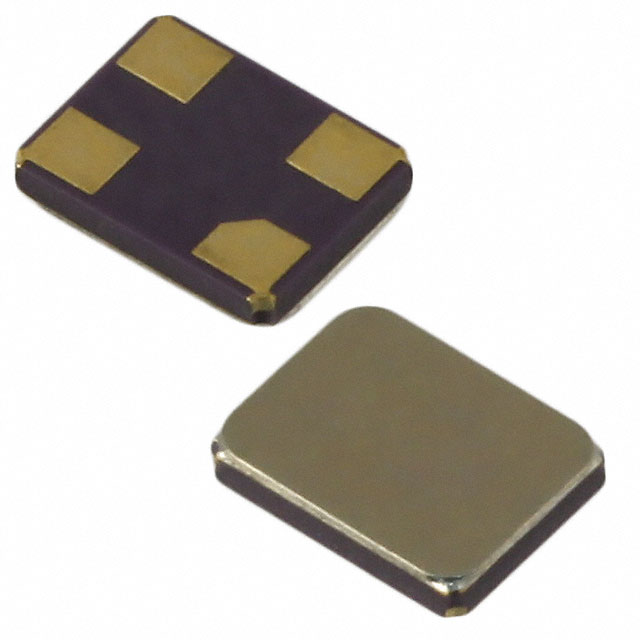

The CS325-20.500MABJ-UT is a surface-mount crystal manufactured by Citizen Finedevice Co Ltd, operating at a nominal frequency of 20.5000 MHz. It features a load capacitance of 18 pF and offers a frequency tolerance of ±30 ppm. The component operates in fundamental mode with an equivalent series resistance (ESR) of 80 Ohms. Designed for commercial applications, it supports a temperature range of -10°C to +60°C. The device utilizes a 4-SMD, no-lead package with dimensions of 3.20mm x 2.50mm and a maximum seated height of 0.60mm.

Crystals Feature Summary

• Surface-mount design compatible with automated assembly processes
• Fundamental oscillation mode for stable frequency generation
• Compact 4-SMD no-lead package footprint

Crystals Applications

• General-purpose clock signal generation in electronic circuits
• Timing reference sources for microcontroller systems
• Communication interface synchronization modules

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required load capacitance and tolerance specifications. Confirm that the package dimensions align with the target PCB layout constraints. Check for any RoHS compliance documentation if environmental regulations apply to the end product. Ensure the operating temperature range meets the system's thermal requirements.

Crystals Selection Notes

Select this component when a 20.5 MHz fundamental frequency is required in a compact surface-mount form factor. Consider the 18 pF load capacitance requirement for circuit design matching. Evaluate the ±30 ppm frequency tolerance against the system's timing accuracy needs. Verify that the commercial temperature range (-10°C to +60°C) is sufficient for the intended application environment.

Crystals Part Context

This part belongs to the CS325 series of surface-mount crystals from Citizen Finedevice. The series is characterized by small footprints suitable for space-constrained designs. The specific model provides a standard communication frequency point within the commercial temperature grade category.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
