CSAB0518-R68M

Fixed Inductors Overview

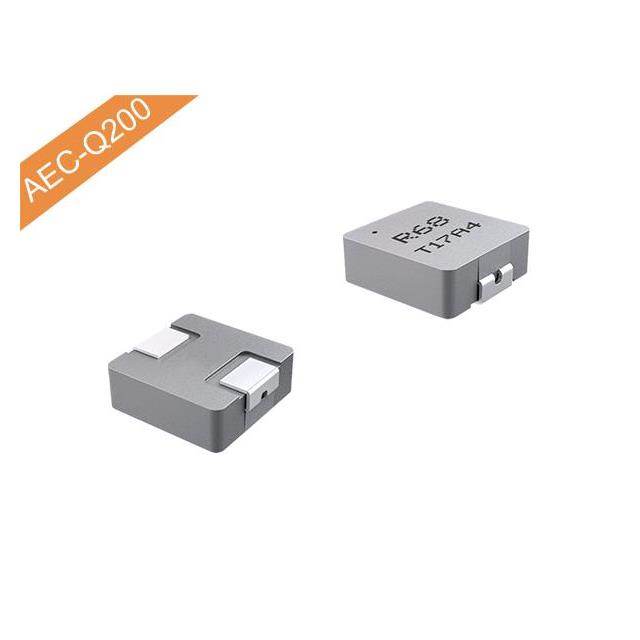

The CODACA CSAB0518-R68M is a fixed surface-mount power inductor with a nominal inductance of 0.68 µH and a tolerance of ±20%. It features a shielded, molded construction using carbonyl powder core material, designed for high-current applications. The component has a maximum DC resistance (DCR) of 11.6 mΩ and supports a rated current of 9.2 A, with a saturation current (Isat) of 10.5 A. Operating within a temperature range of -40°C to +125°C, it utilizes a 2-SMD package with dimensions of 5.00 mm x 5.00 mm x 1.80 mm.

Fixed Inductors Feature Summary

• Shielded molded design minimizes electromagnetic interference
• High saturation current capability for power supply stability
• Low DC resistance reduces power loss and heat generation

Fixed Inductors Applications

• Point-of-load (POL) voltage regulation modules
• DC-DC converter output filtering
• High-current power distribution networks

Fixed Inductors Procurement Notes

Verify the manufacturer product number CSAB0518-R68M against official CODACA documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required packaging format, such as tape and reel quantities. Check RoHS compliance status and moisture sensitivity level requirements before integration into the production line to avoid handling issues.

Fixed Inductors Selection Notes

Select this component when a compact 5x5 mm footprint is required alongside high current handling capabilities. The low DCR value makes it suitable for efficiency-critical designs. Ensure the application current does not exceed the 9.2 A rated limit or the 10.5 A saturation threshold to maintain inductance stability and prevent thermal overload.

Fixed Inductors Part Context

This part belongs to the CSAB series of high-current power inductors from CODACA. The series emphasizes small size and high efficiency, utilizing advanced molding techniques to achieve robust performance in tight spaces. It complements other components like the CSAC series by offering higher current density in similar form factors.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching electrical parameters including 0.68 µH inductance, 9.2 A rated current, and 11.6 mΩ DCR within the same 2-SMD package constraints.
