CVW-UMB-2C2C-BLK-120

Antennas RF Overview

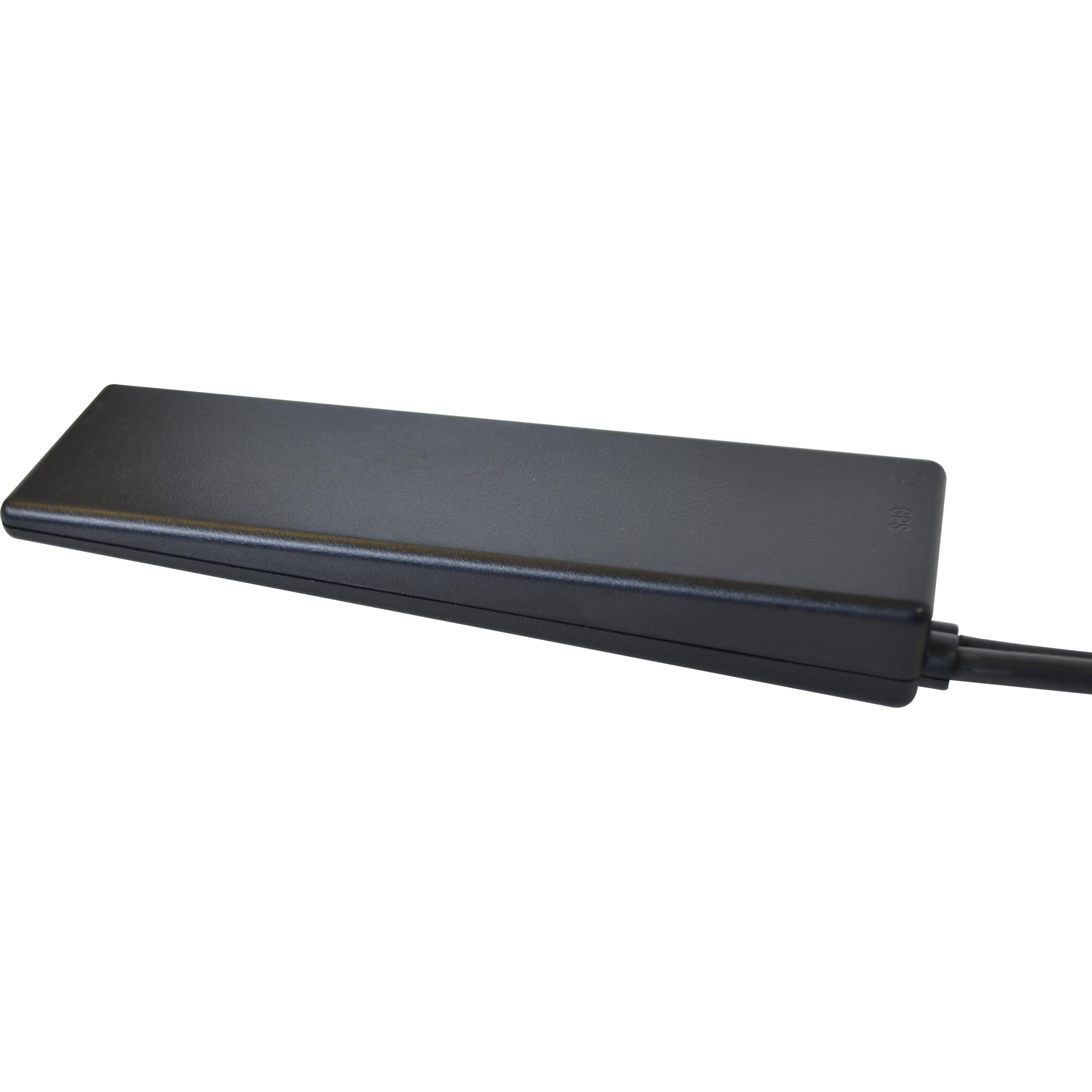

The CVW-UMB-2C2C-BLK-120 is a multi-band blade antenna designed for LTE, UMTS, AWS, and GPS applications. It operates across three frequency bands: 800MHz to 960MHz, 1.7GHz to 2.2GHz, and the GPS L1 band. The component features an SMA connector with a maximum gain of 2.5dBi per band and a Voltage Standing Wave Ratio (VSWR) of 2. It utilizes a molded construction suitable for covert installation environments.

Antennas RF Feature Summary

• Multi-band capability supporting LTE, UMTS, AWS, and GPS frequencies
• Molded blade design for discreet or covert mounting
• Integrated SMA connector for direct RF interface

Antennas RF Applications

• LTE cellular communication systems
• UMTS network infrastructure
• AWS spectrum deployment
• GPS navigation receivers

Antennas RF Procurement Notes

Verify part availability through authorized distributors as supply status may vary. Confirm technical specifications against current manufacturer documentation prior to integration. Ensure compatibility with existing SMA interfaces and mounting requirements. Review compliance certifications such as RoHS for regulatory adherence in target markets.

Antennas RF Selection Notes

Select this model when covert installation aesthetics are required alongside multi-band support. The 2.5dBi gain suits general coverage needs rather than high-directionality scenarios. Verify that the SMA connector polarity matches system requirements. Consider environmental factors affecting molded antenna longevity.

Antennas RF Part Context

Mobile Mark Antenna Solutions specializes in wireless antennas covering 138 MHz to 9 GHz. This blade series targets mobile communications requiring low-profile solutions. The CVW-UMB variant integrates multiple bands into a single compact unit, replacing separate antennas for LTE, UMTS, and GPS functions.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in verified sources. Evaluate CVW-LTE-2C2C-BLK-120 for similar form factor but verify frequency range differences. Cross-reference with other Mobile Mark blade antennas ensuring SMA connectivity and gain specifications align.
