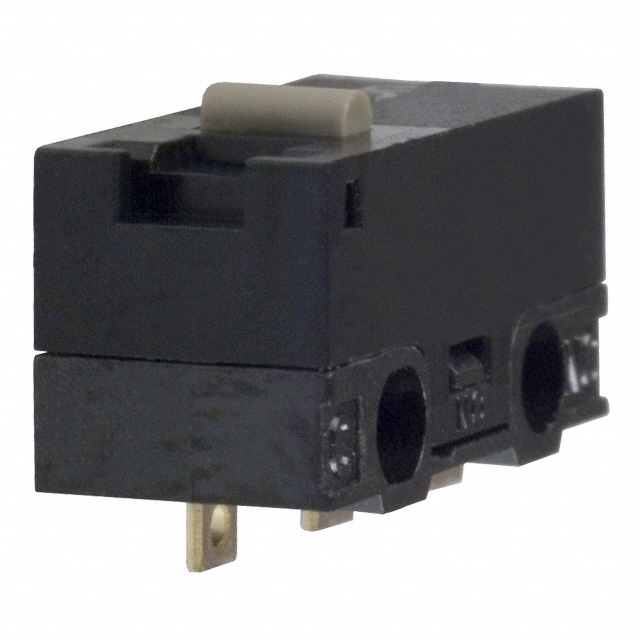

Limit Switches D2F-01F-D product image

D2F-01F-D

$1.57

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Tray

SKU:5bc23a152931 Category: Limit Switches Brand: Omron Electronics Inc-EMC Div

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

D2F-01F-D is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2F-01F-D

Description：SWITCH SNAP ACTION SPDT 0.1A 30V
Series：D2F
Mfr：Omron Electronics Inc-EMC Div
Package：Tray
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：100mA (DC)
Voltage Rating - AC：-
Actuator Type：Round (Pin Plunger)
Mounting Type：Chassis Mount
Termination Style：Solder Lug
Ingress Protection：IP40
Features：-
Operating Force：75gf
Release Force：5.099gf
Operating Position：0.217" (5.5mm)
Pretravel：0.020" (0.5mm)
Differential Travel：0.005" (0.13mm)
Overtravel：0.010" (0.25mm)
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：30 V
