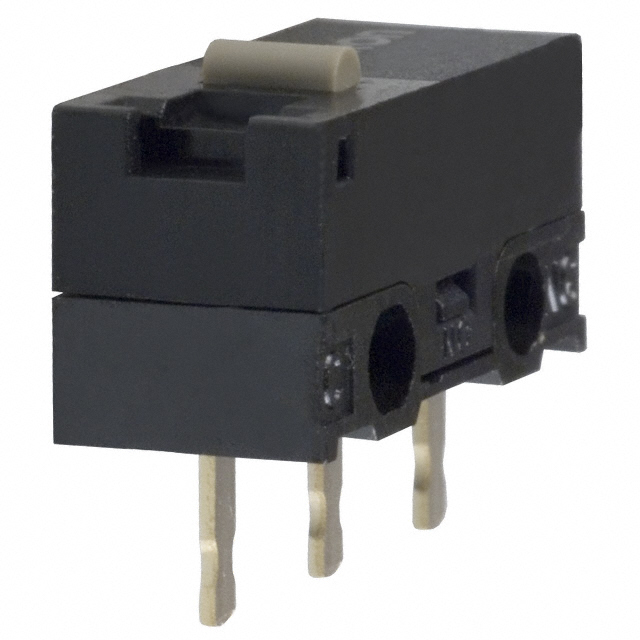

D2F-F-T

D2F-F-T is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACTION SPDT 1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2F-F-T

• Description：SWITCH SNAP ACTION SPDT 1A 125V
• Series：D2F
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：1A (AC), 500mA (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Through Hole
• Termination Style：PC Pin
• Ingress Protection：IP40
• Features：-
• Operating Force：75gf
• Release Force：5.099gf
• Operating Position：0.217" (5.5mm)
• Pretravel：0.020" (0.5mm)
• Differential Travel：0.005" (0.13mm)
• Overtravel：0.010" (0.25mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for D2F-F-T
