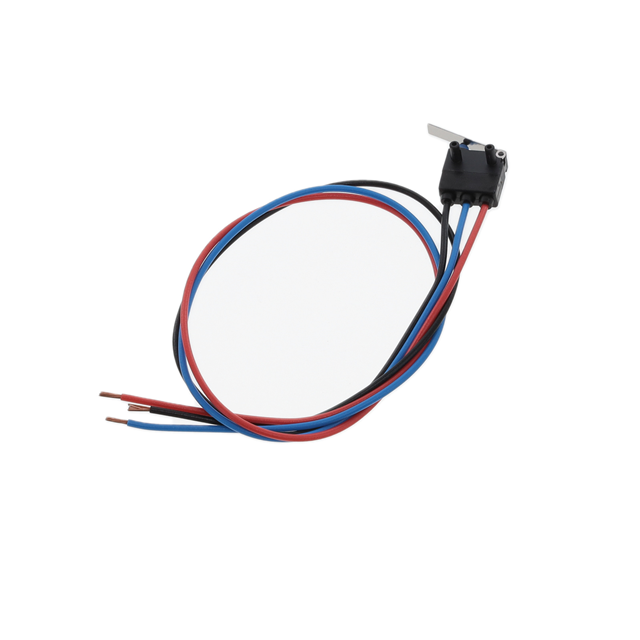

D2HW-BL221M

D2HW-BL221M is listed in the Limit Switches range at ChipApex. The manufacturer field lists Omron Electronics Inc-EMC Div. Its product description is SWITCH SNAP ACT SPDT 0.1A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for D2HW-BL221M

• Description：SWITCH SNAP ACT SPDT 0.1A 125V
• Series：D2HW
• Mfr：Omron Electronics Inc-EMC Div
• Package：Tray
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：100mA (AC), 2A (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Lever, Straight
• Mounting Type：Chassis Mount
• Termination Style：Wire Leads
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：Support Posts
• Operating Force：50gf
• Release Force：3.059gf
• Operating Position：0.366" (9.3mm)
• Pretravel：-
• Differential Travel：0.031" (0.8mm)
• Overtravel：0.098" (2.5mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：12 V

Limit Switches datasheet and documents for D2HW-BL221M
