DAC60516RUYT

Digital To Analog Converters Overview

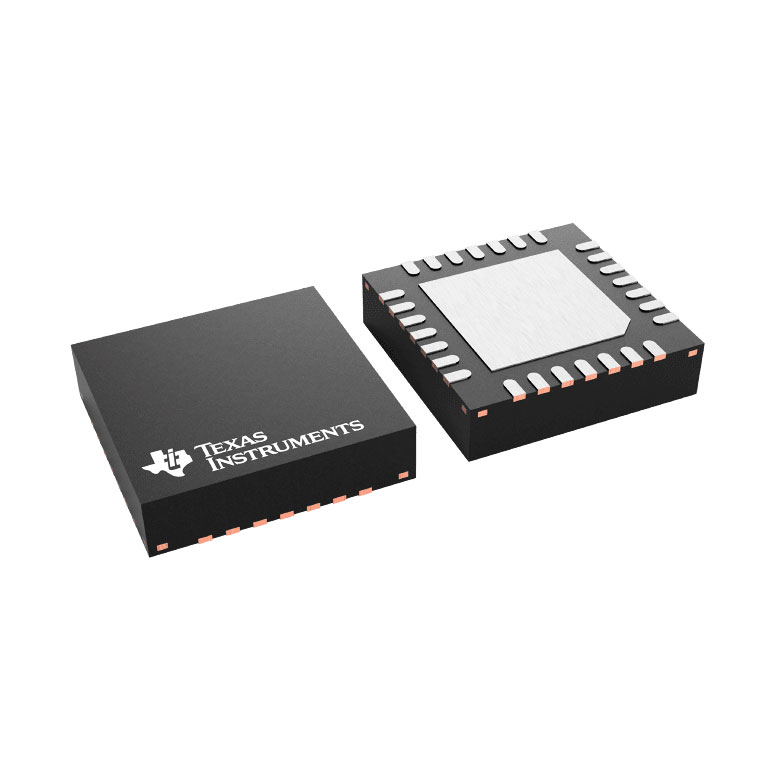

The DAC60516RUYT is a 12-bit, 16-channel buffered voltage-output digital-to-analog converter (DAC) from Texas Instruments. It features an integrated 2.5V precision internal reference with ±2.5mV initial accuracy and 15ppm/°C drift. The device supports SPI and I2C interfaces operating at clock rates up to 50MHz during writes, with VIO ranging from 1.7V to 5.5V. Key electrical parameters include a maximum integral nonlinearity (INL) of ±1 LSB, total unadjusted error (TUE) of ±0.15% FSR, and a settling time of 6μs to ±1LSB. It operates on a single analog supply (AVDD) of 2.7V to 5.5V, consumes 13mA typically in active mode, and provides 50mA output drive capability within 0.5V of the supply rails. The component is housed in a 4mm × 4mm, 28-pin WQFN package.

Digital To Analog Converters Feature Summary

• Integrates a high-precision 2.5V internal reference source to minimize external component requirements.
• Provides flexible configuration options including user-selectable gain settings and clear output functionality.
• Supports dual serial communication protocols with wide voltage compatibility for diverse microprocessor systems.

Digital To Analog Converters Applications

• Optical modules
• Inter-DC interconnect
• Analog output module

Digital To Analog Converters Procurement Notes

Verify the specific ordering suffix RUYT against the manufacturer's current datasheet to confirm the tape-and-reel packaging format and quantity per reel. Ensure that the required temperature range and interface voltage levels match the system design specifications before finalizing procurement decisions.

Digital To Analog Converters Selection Notes

Select this component when a multi-channel solution with integrated reference and high drive current is required. Verify that the 12-bit resolution and 6μs settling time meet the application speed and accuracy needs. Confirm that the WQFN package size fits the available PCB real estate and thermal management constraints.

Digital To Analog Converters Part Context

This part belongs to the DAC60516 family of 16-channel voltage-output DACs. The RUY suffix indicates the 28-pin WQFN package type. The T suffix denotes the tape-and-reel packaging option. This series is designed for applications requiring multiple buffered outputs with high integration and low power consumption.

Digital To Analog Converters Replacement Considerations

Check for direct pin-compatible alternatives within the same product family. Verify that any substitute maintains the 16-channel count, 12-bit resolution, and similar drive capabilities. Ensure the replacement supports the required SPI/I2C interface speeds and voltage ranges.

Digital To Analog Converters FAQ

What is the maximum clock rate for SPI write operations?

SPI write operations can be performed at frequencies up to 50MHz.

How many target addresses are supported for I2C communication?

The device supports four target addresses for I2C communication.

What is the typical active mode supply current?

The typical active mode supply current is 13mA with the internal reference enabled.
