DASLTE500NFMIMO

Antennas RF Overview

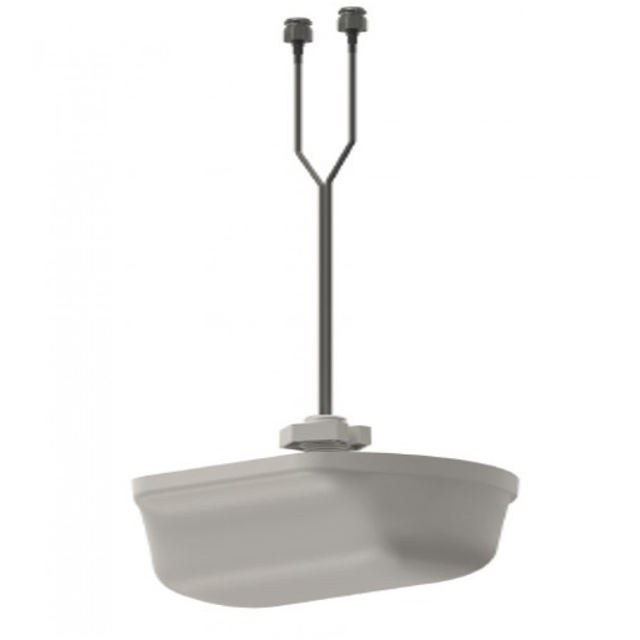

The DASLTE500NFMIMO is a multiprotocol indoor antenna designed for Distributed Antenna Systems (DAS) supporting MIMO configurations. It covers frequency bands of 617-960 MHz, 1710-2170 MHz, 2300-2700 MHz, and 4900-5900 MHz. The unit features an N-type female connector and utilizes a ceiling mount installation style. It includes dual 500mm cables to facilitate integration into wireless infrastructure networks.

Antennas RF Feature Summary

• Supports multiple wireless protocols including 2G, 3G, 4G, LTE, Wi-Fi, and WiMax
• Engineered for low passive intermodulation (PIM) performance in dense signal environments
• Designed specifically for in-building coverage solutions via ceiling mounting

Antennas RF Applications

• In-building cellular coverage expansion
• MIMO WiFi network deployment
• 4G/LTE signal distribution systems
• WiMax infrastructure support

Antennas RF Procurement Notes

Verify the specific connector type and cable length requirements against your system design before ordering. Confirm that the ceiling mount configuration aligns with your facility's structural constraints. Ensure compatibility with existing DAS headend equipment operating within the specified frequency ranges. Check for any regional regulatory approvals required for the supported bands.

Antennas RF Selection Notes

Select this model when a unified solution for multiple cellular and data protocols is required within a single enclosure. The MIMO capability makes it suitable for high-throughput applications. Consider the included dual 500mm cables as part of the total installation length calculation. This component is intended for indoor use rather than outdoor exposure.

Antennas RF Part Context

This component belongs to Pulse Electronics' PIMinator series of DAS antennas. It is part of a product line focused on providing comprehensive indoor wireless coverage solutions. The series includes various configurations to suit different mounting needs while maintaining consistent RF performance standards across the portfolio.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult official distributor channels or manufacturer catalogs for current equivalent products if this specific model is discontinued.
