DB2G32500L1

$0.09

Description：DIODE SCHOT 30V 1A DCSP1006010N1
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR)

SKU:07bf9e266a2e Category: Single Diodes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

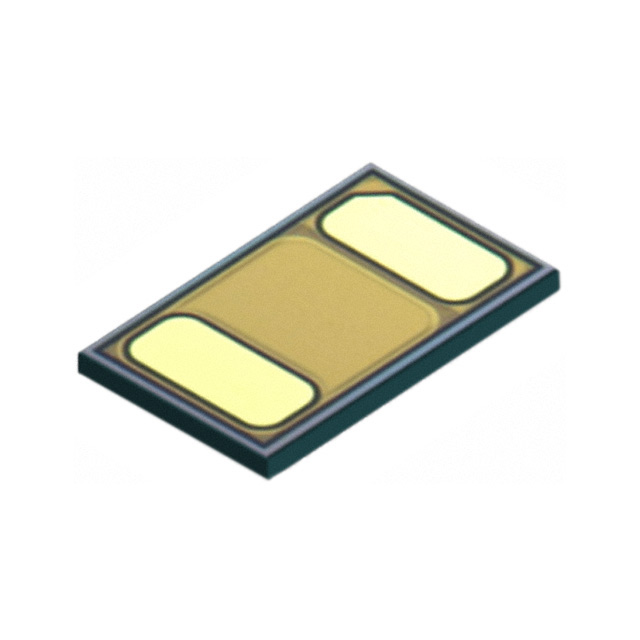

DB2G32500L1 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is DIODE SCHOT 30V 1A DCSP1006010N1. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for DB2G32500L1

Description：DIODE SCHOT 30V 1A DCSP1006010N1
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：30 V
Current - Average Rectified (Io)：1A
Voltage - Forward (Vf) (Max) @ If：480 mV @ 1 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：10.3 ns
Current - Reverse Leakage @ Vr：300 µA @ 30 V
Capacitance @ Vr, F：34pF @ 10V, 1MHz
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric)
Supplier Device Package：DCSP1006010-N1
Operating Temperature - Junction：150°C (Max)

Single Diodes datasheet and documents for DB2G32500L1

DB2G32500L1

Single Diodes Overview

The Panasonic DB2G32500L1 is a Schottky Barrier Diode designed for rectification applications. It features an average forward current rating of 1.0 A and a maximum peak reverse voltage of 30 V. The device operates within a junction temperature range of -40°C to +150°C and supports storage temperatures from -55°C to +150°C. Key electrical characteristics include a low forward voltage of 0.39 V typical at 1.0 A, a reverse recovery time of 10.3 ns, and a terminal capacitance of 3 pF. The component is housed in the DCSP1006010-N1 package.

Single Diodes Feature Summary

Low forward voltage characteristic for efficient power conversion
Fast reverse recovery time suitable for high-frequency switching
High thermal stability with extended operating junction temperature range

Single Diodes Applications

General-purpose rectification circuits
Office equipment power supplies
Communications equipment
Household appliances

Single Diodes Procurement Notes

Verify the specific datasheet revision and ordering suffix before procurement. Confirm that the intended application falls within general use categories, as special applications require explicit manufacturer agreement. Ensure static electricity precautions are observed during handling due to device sensitivity. Check for any updates to product standards or specifications prior to final design implementation.

Single Diodes Selection Notes

Select this component for designs requiring a compact Schottky diode with low forward voltage drop and fast switching speeds. Ensure the circuit's peak reverse voltage does not exceed 30 V and the average forward current remains within 1.0 A limits. Consider the thermal resistance values when designing heat dissipation strategies on FR4 PCBs to maintain junction temperature below the maximum rating.

Single Diodes Part Context

This component belongs to the Panasonic Schottky Barrier Diode series, specifically optimized for surface-mount applications. It utilizes the DCSP1006010-N1 package format, which facilitates automated assembly. The device is compliant with EU RoHS directives and meets MSL Level 1 requirements for moisture sensitivity.
