DL4150-TP

Single Diodes Overview

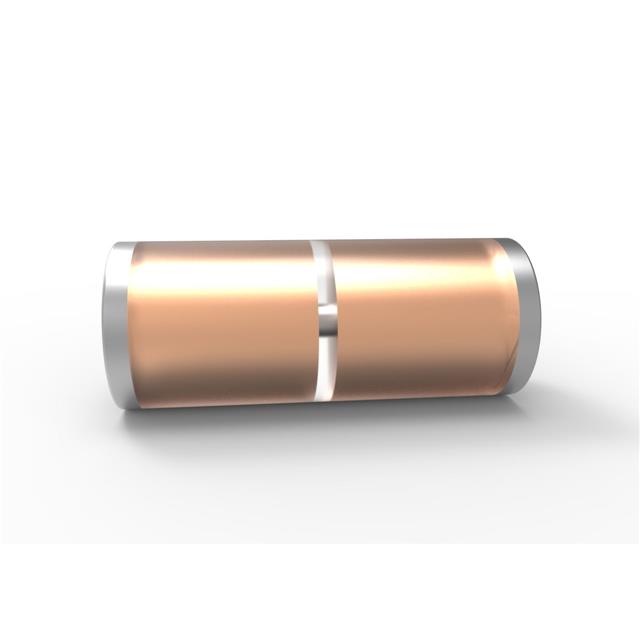

The DL4150-TP is a small signal switching diode manufactured by Micro Commercial Components (MCC). It utilizes silicon epitaxial planar technology and is housed in a MiniMELF (SOD-80C) surface-mount package. The device supports a working inverse voltage of 50V and an average rectified current of 200mA. Key electrical characteristics include a maximum reverse recovery time of 6.0ns, a breakdown voltage of 75V at 5.0μA leakage, and a total device dissipation of 500mW. The component operates within a junction temperature range up to 175°C.

Single Diodes Feature Summary

• Designed for general purpose and high-speed switching applications
• Utilizes silicon epitaxial planar construction for reliability
• Surface-mount MiniMELF package suitable for automated insertion

Single Diodes Applications

• General purpose rectification circuits
• High-speed switching logic interfaces
• Computer diode applications

Single Diodes Procurement Notes

Verify the authenticity of the DL4150-TP by purchasing exclusively from Micro Commercial Components or their authorized distributors. MCC explicitly warns against unauthorized sources due to counterfeiting risks. Ensure the ordering suffix matches the required tape and reel quantity of 2.5K pieces per reel. Confirm compliance with RoHS standards and UL 94 V-0 flammability ratings as specified in the official datasheet documentation.

Single Diodes Selection Notes

Select the DL4150-TP when a surface-mount alternative to the DO-35 1N4150 is required. This component offers identical electrical performance to through-hole variants while providing a compact footprint. Consider the MiniMELF package dimensions and thermal resistance of 300°C/W when designing PCB layouts. Verify that the 50V reverse voltage rating meets the specific circuit requirements.

Single Diodes Part Context

The DL4150-TP belongs to the broader family of small signal switching diodes produced by Micro Commercial Components. It serves as the surface-mount equivalent to the traditional DO-35 packaged 1N4150 and the SOD-123 packaged 1N4150W. This product line focuses on providing reliable silicon epitaxial planar diodes for compact electronic designs requiring fast switching capabilities.

Single Diodes Replacement Considerations

The DL4150-TP is functionally interchangeable with the 1N4150 (DO-35 case) and 1N4150W (SOD-123 case). When replacing these components, ensure the new part accommodates the MiniMELF package geometry. Verify that the replacement source maintains the same electrical specifications regarding reverse recovery time and forward voltage.
