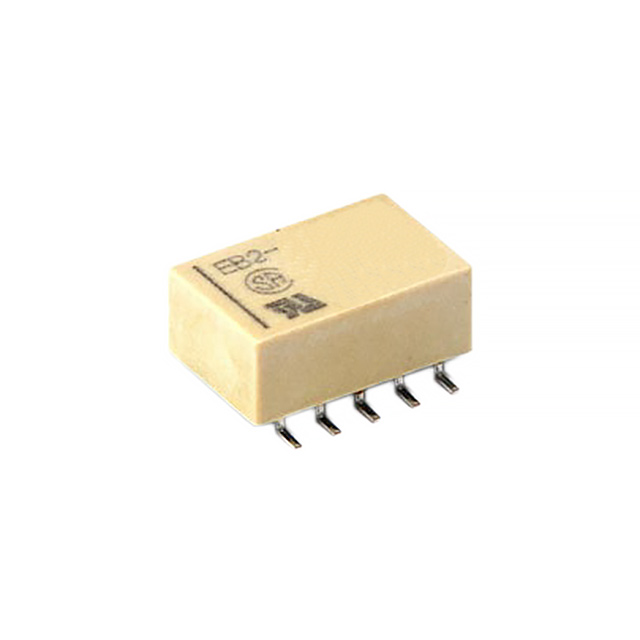

EB2-12NU

EB2-12NU is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists KEMET. Its product description is RELAY GEN PURPOSE DPDT 1A 12V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for EB2-12NU

• Description：RELAY GEN PURPOSE DPDT 1A 12V
• Series：EB2
• Mfr：KEMET
• Package：Tube
• Mounting Type：Surface Mount
• Coil Voltage：12VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：1:00 AM
• Switching Voltage：250VAC, 220VDC - Max
• Load - Max Switching：250VA, 220W
• Coil Current：11.7 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Gull Wing
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：9 VDC
• Must Release Voltage：1.2 VDC
• Operate Time：2 ms
• Release Time：1 ms
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Alloy, Gold Alloy
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-

Signal Relays, Up To 2 Amps datasheet and documents for EB2-12NU
