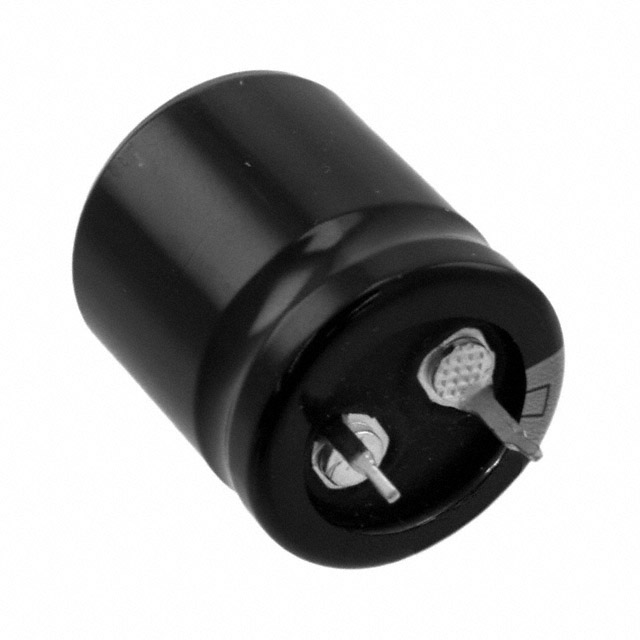

ECO-S1EP332BA

ECO-S1EP332BA is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 3300UF 20% 25V SNAP TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for ECO-S1EP332BA

• Description：CAP ALUM 3300UF 20% 25V SNAP TH
• Series：TS-UP
• Mfr：Panasonic Electronic Components
• Package：Bulk
• Capacitance：3300 µF
• Tolerance：±20%
• Voltage - Rated：25 V
• ESR (Equivalent Series Resistance)：161mOhm @ 120Hz
• Lifetime @ Temp.：3000 Hrs @ 85°C
• Operating Temperature：-40°C ~ 85°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：1.68 A @ 120 Hz
• Ripple Current @ High Frequency：1.932 A @ 100 kHz
• Lead Spacing：0.394" (10.00mm)
• Size / Dimension：0.866" Dia (22.00mm)
• Height - Seated (Max)：0.984" (25.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can - Snap-In

Aluminum Electrolytic Capacitors datasheet and documents for ECO-S1EP332BA
