ECS-260-18-30-GM-TR

Crystals Overview

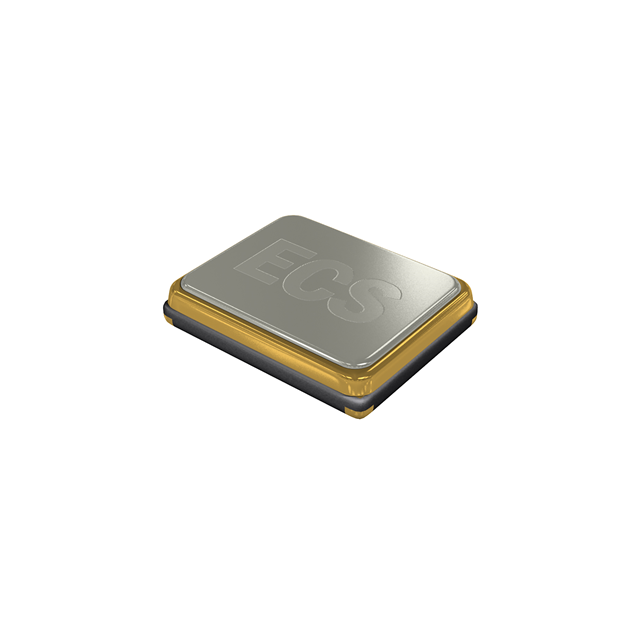

The ECS-260-18-30-GM-TR is a surface-mount crystal oscillator from the ECX-53 series manufactured by ECS Inc. It operates at a nominal frequency of 26 MHz with a tolerance and stability of ±30 ppm. The component features a load capacitance of 18 pF and an equivalent series resistance (ESR) of 30 Ohms. It utilizes a 2-pad SMD package measuring 5.00mm x 3.20mm. The device is designed for operation within a temperature range of -20°C to +70°C.

Crystals Feature Summary

• Surface mount construction for automated assembly
• High frequency stability within specified temperature range
• Compact footprint suitable for space-constrained designs

Crystals Applications

• Microcontroller clock sources
• Communication interface circuits
• Digital signal processing systems

Crystals Procurement Notes

Verify the complete part number including suffixes against official ECS Inc. documentation to ensure correct frequency, tolerance, and packaging specifications. Confirm that the requested variant matches the required operating temperature range and load capacitance parameters for your specific circuit design before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 26 MHz reference is required with ±30 ppm stability. Ensure the application circuit provides the necessary 18 pF load capacitance to maintain accuracy. Verify that the 30 Ohm ESR aligns with the oscillator circuit requirements and that the -20°C to +70°C operating range meets environmental conditions.

Crystals Part Context

This part belongs to the ECX-53 series of surface-mount crystals from ECS Inc. The series offers various frequencies and package sizes optimized for consumer electronics and industrial applications. The specific model denotes the 26 MHz frequency, 18 pF load, and standard tolerance variants within this product line.

Crystals Replacement Considerations

Direct substitutes must match the 26 MHz frequency, 18 pF load capacitance, 30 Ohm ESR, and 5.00mm x 3.20mm package dimensions. Cross-reference with other manufacturers' 26 MHz SMD crystals ensuring identical electrical parameters and thermal characteristics are maintained.
