ECS-MPIL0630-2R2MC

Fixed Inductors Overview

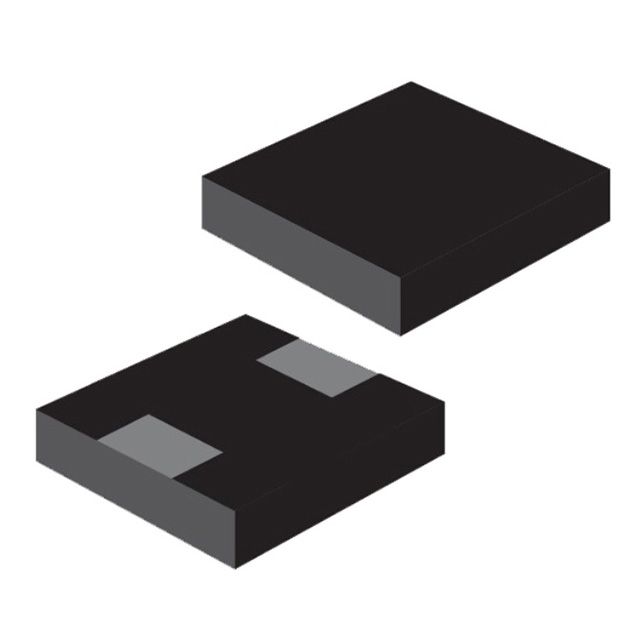

The ECS-MPIL0630-2R2MC is a shielded, molded surface-mount power inductor from the ECS-MPIL0630 series. It features an inductance of 2.2 µH with a tolerance of ±20%. The component supports a maximum rated current of 10 A and has a maximum DC resistance (DCR) of 15 mΩ. Measuring 7.40 mm in length, 6.60 mm in width, and 3.00 mm in height, it is tested at 100 kHz. The device complies with RoHS3 standards and carries an MSL rating of Level 1.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference
• Molded design provides mechanical stability
• Surface-mount format enables automated assembly

Fixed Inductors Applications

• DC-DC converter output filtering
• Power supply input stages
• Point-of-load regulation circuits

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official ECS Inc. documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required electrical parameters. Check for compliance certifications such as RoHS3 if environmental regulations apply to your manufacturing process. Ensure storage conditions align with the specified moisture sensitivity level.

Fixed Inductors Selection Notes

Select this component when a compact shielded inductor is required for high-current applications. The 10 A rating and low DCR make it suitable for efficient power conversion. Consider the physical dimensions to ensure compatibility with the target PCB footprint. Verify that the 2.2 µH value meets the circuit's ripple current and frequency requirements.

Fixed Inductors Part Context

This part belongs to the ECS-MPIL0630 series of SMD power inductors. The series offers various inductance values within a standardized non-standard package size. These components are designed for general-purpose power electronics, providing a balance between performance and space efficiency in modern electronic devices.

Fixed Inductors Replacement Considerations

Direct substitutes must match the 2.2 µH inductance, 10 A current rating, and 15 mΩ DCR. Compatible alternatives should share the same 7.40mm x 6.60mm x 3.00mm footprint and shielded construction to ensure mechanical and electrical interchangeability without redesigning the PCB.
