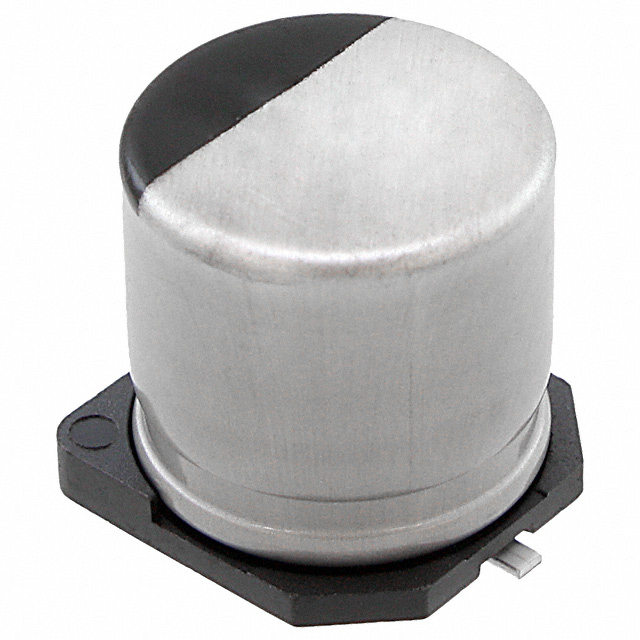

EEE-TC1V391UP

EEE-TC1V391UP is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 390UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEE-TC1V391UP

• Description：CAP ALUM 390UF 20% 35V SMD
• Series：TCU
• Mfr：Panasonic Electronic Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：390 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：150mOhm @ 100kHz
• Lifetime @ Temp.：3000 Hrs @ 125°C
• Operating Temperature：-40°C ~ 125°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive, High Temperature Reflow
• Ripple Current @ Low Frequency：487.5 mA @ 120 Hz
• Ripple Current @ High Frequency：750 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.394" Dia (10.00mm)
• Height - Seated (Max)：0.413" (10.50mm)
• Surface Mount Land Size：0.406" L x 0.406" W (10.30mm x 10.30mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD

Aluminum Electrolytic Capacitors datasheet and documents for EEE-TC1V391UP
