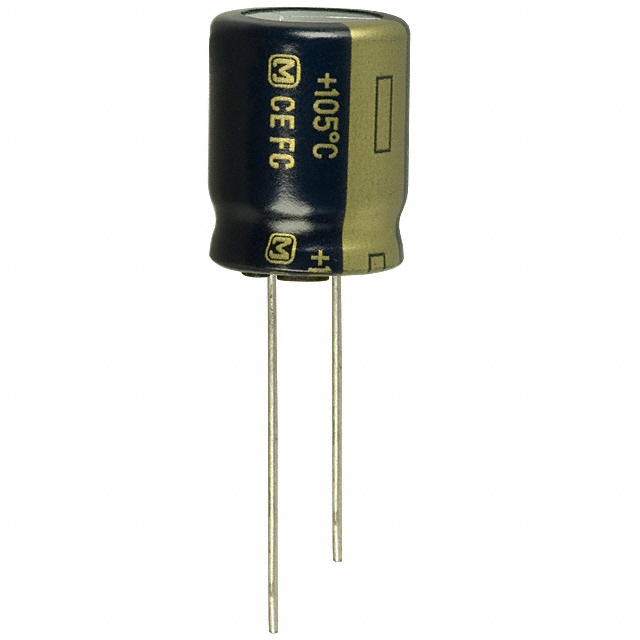

EEU-FC1H681

EEU-FC1H681 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 680UF 20% 50V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEU-FC1H681

• Description：CAP ALUM 680UF 20% 50V RADIAL TH
• Series：FC
• Mfr：Panasonic Electronic Components
• Package：Bulk
• Capacitance：680 µF
• Tolerance：±20%
• Voltage - Rated：50 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：1.376 A @ 120 Hz
• Ripple Current @ High Frequency：1.835 A @ 100 kHz
• Lead Spacing：0.295" (7.50mm)
• Size / Dimension：0.630" Dia (16.00mm)
• Height - Seated (Max)：0.787" (20.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：48 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for EEU-FC1H681
