EHF-113-01-F-D-RA

Headers, Male Pins Overview

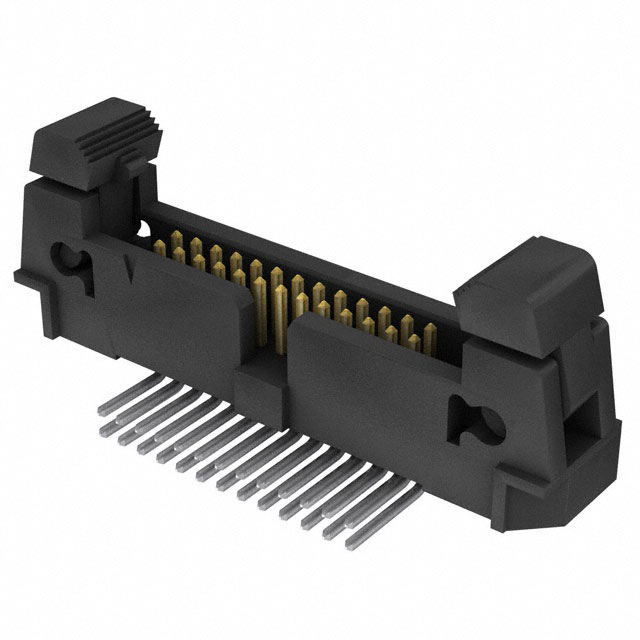

The EHF-113-01-F-D-RA is a right-angle header from the Samtec EHF series, designed for wire-to-board connections. It features a 1.27 mm (0.050 inch) pitch with 26 positions arranged in two rows. The connector utilizes an ejector latch mechanism and includes a shrouded housing with four walls for shielding. Contact materials consist of phosphor bronze with gold plating on mating surfaces and tin on column contacts. The unit supports through-hole mounting and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Ejector latch system for secure retention
• Shrouded housing design with four-wall shielding
• Right-angle through-hole termination
• Gold-plated contact surfaces for reliability

Headers, Male Pins Applications

• Wire-to-board interconnections
• High-density circuit board assemblies
• Industrial control systems requiring shielded headers

Headers, Male Pins Procurement Notes

Verify part number accuracy against official Samtec documentation before ordering. Confirm that the ejector latch mechanism aligns with assembly requirements. Ensure compatibility with mating connectors regarding pitch and housing dimensions. Check RoHS compliance status if environmental regulations apply. Validate thermal performance specifications against operational conditions.

Headers, Male Pins Selection Notes

Select this component when a right-angle, shielded header with an ejector latch is required. The 1.27 mm pitch suits high-density applications. Consider the through-hole mounting style for robust mechanical attachment. Evaluate the operating temperature range against environmental constraints. Verify that the shrouded design meets electromagnetic interference mitigation needs.

Headers, Male Pins Part Context

This part belongs to the EHF series of shrouded IDC headers by Samtec. It shares the series characteristics but differs in specific configuration such as pitch, position count, and termination style. The EHT series offers similar functionality but with a different pitch specification. Cross-reference with related models like EHF-113-01-F-D-RA-LC for lead-free variants.

Headers, Male Pins Replacement Considerations

EHF-113-01-F-D-RA-LC serves as a confirmed lead-free substitute within the same series. Verify mechanical fit and electrical parameters before substitution. Ensure the ejector latch function remains compatible with existing assembly tools.
