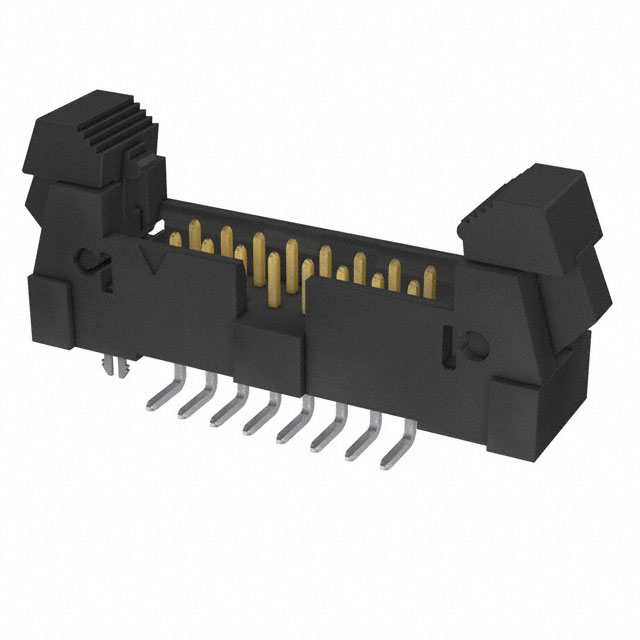

EHT-108-01-L-D-SM-LC-P

Headers, Male Pins Overview

The EHT-108-01-L-D-SM-LC-P is a board connector from the Samtec EHT series, featuring a 2.00 mm (0.079 inch) pitch and 16 contacts arranged in two rows. It utilizes surface mount termination for PCB integration. The connector employs phosphor bronze terminals with gold plating over nickel in the contact area and matte tin on the tail. The insulator is constructed from black liquid crystal polymer (LCP), rated UL94 V-0. It includes an ejector latch mechanism and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• Integrates an ejector latch system for secure connection and easy removal
• Utilizes shrouded design with keying features for precise alignment
• Supports surface mount technology for automated assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections
• Board-to-cable/wire connections
• High-density electronic assemblies requiring reliable signal transmission

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required plating specification, as variations exist within the EHT family. Confirm the lead style and contact count align with the target PCB layout. Ensure compatibility with mating connectors regarding pin length and insulation height. Check RoHS compliance status if required by project specifications. Validate thermal ratings against the operating environment.

Headers, Male Pins Selection Notes

Select this component when a 2.00 mm pitch header with surface mount capability is required. The dual-row configuration provides higher density compared to single-row alternatives. Consider the ejector latch feature if frequent maintenance or module replacement is anticipated. Evaluate the LCP material properties for high-temperature soldering processes. Ensure the shrouded design meets spatial constraints and alignment needs.

Headers, Male Pins Part Context

This part belongs to the EHT series of shrouded IDC ejector headers manufactured by Samtec Inc. The series is designed for high-reliability applications requiring robust mechanical retention. The specific model indicates a 16-position variant with surface mount tails and gold-plated contacts. It is distinct from non-shrouded or through-hole variants within the broader connector portfolio.

Headers, Male Pins Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation for this exact suffix combination. Cross-reference with other EHT series parts having identical pitch, row count, and mounting style. Verify mechanical dimensions and electrical ratings before substitution. Consult manufacturer datasheets for updated equivalent part numbers.
