EHT-115-01-F-D-RA

Headers, Male Pins Overview

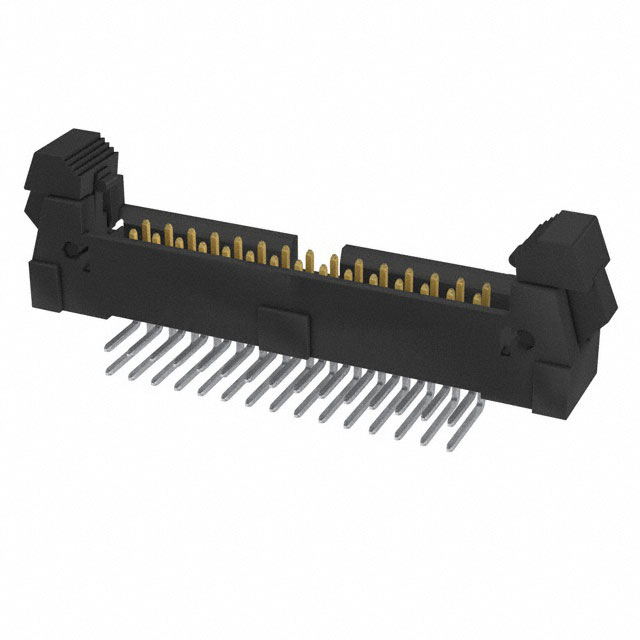

The EHT-115-01-F-D-RA is a board connector featuring 30 contacts arranged in two rows. It utilizes a male contact configuration with a 0.079 inch (2.00 mm) pitch. The component employs solder terminals for through-hole mounting and includes latch and eject mechanisms for secure connection. The insulator is constructed from black liquid crystal polymer (LCP). Contact plating consists of gold over nickel, while termination plating is tin over nickel. The housing dimensions are 1.724 inches in length, 0.508 inches in depth, and 0.3 inches in width.

Headers, Male Pins Feature Summary

• Integrates latch and eject mechanisms to secure mating connections
• Utilizes shrouded design for precise alignment during assembly
• Features polarization notch to prevent incorrect insertion

Headers, Male Pins Applications

• Board-to-cable interconnections using IDC assemblies
• High-density electronic circuit board layouts
• Industrial control system signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to confirm terminal orientation and plating specifications. Ensure compatibility with mating TCSD cable assemblies by checking pin count and pitch requirements. Confirm RoHS compliance status and moisture sensitivity levels prior to integration into production workflows.

Headers, Male Pins Selection Notes

Select this model when a right-angle through-hole header with integrated ejection features is required. Evaluate the 2.00 mm pitch constraint against available PCB real estate. Consider the mechanical retention provided by the ejector latches for vibration-prone environments compared to standard headers.

Headers, Male Pins Part Context

This component belongs to the EHT series of shrouded IDC ejector headers manufactured by Samtec. The series offers various pin counts and mounting options, including surface mount and straight configurations. The EHT-115 variant specifically provides a 30-contact capacity suitable for dense signal distribution applications.

Headers, Male Pins Replacement Considerations

EHT-115-01-L-D-RA

Headers, Male Pins FAQ

What is the operating temperature range for this connector?

The specified operating temperature range is -55 °C to +125 °C.

Does this connector support polarization?

Yes, the connector features a polarization notch to ensure correct orientation during mating.
