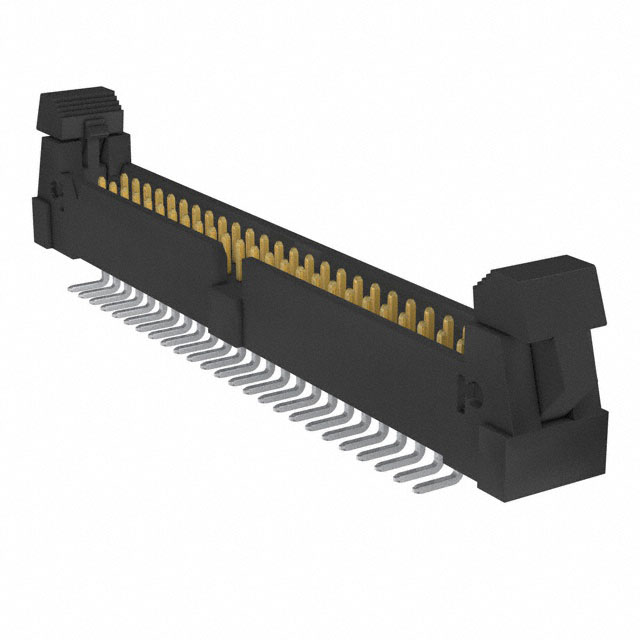

EHT-125-01-L-D-SM-K-TR

$77.02

Description：CONN HEADER SMD 50POS 2MM
Series：EHT
Mfr：Samtec Inc.
Package：Tape & Reel (TR),Tape & Reel (TR)

SKU:f1e09f07c4b4 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EHT-125-01-L-D-SM-K-TR is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER SMD 50POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for EHT-125-01-L-D-SM-K-TR

Description：CONN HEADER SMD 50POS 2MM
Series：EHT
Mfr：Samtec Inc.
Package：Tape & Reel (TR),Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：50
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Latch Lock/Eject Hooks
Contact Length - Mating：0.120" (3.05mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.370" (9.40mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Keying Slot, Pick and Place
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for EHT-125-01-L-D-SM-K-TR

EHT-125-01-L-D-SM-K-TR

Headers, Male Pins Overview

The EHT-125-01-L-D-SM-K-TR is a surface mount header manufactured by Samtec Inc., featuring a 2mm pitch and 50 positions across two rows. It utilizes gold-plated contacts with a 10.0µin thickness and tin-plated tails for soldering. The connector supports a rated current of 3.2A per contact and withstands 350VAC, operating within a temperature range of -55°C to 125°C. Constructed with LCP insulation and copper beryllium contacts, it includes shrouding and an ejector mechanism for secure board-to-cable connections.

Headers, Male Pins Feature Summary

Shrouded design with integrated ejector headers for reliable mating
Surface mount termination compatible with automated assembly
Gold-plated contact surfaces ensuring stable signal transmission

Headers, Male Pins Applications

Board-to-cable interconnections using IDC cable assemblies
High-density electronic system wiring
Industrial control panel interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix K-TR indicates tape-and-reel packaging configuration. Confirm RoHS3 compliance status matches project requirements. Ensure mating cable assemblies are compatible with the 2mm pitch and shrouded geometry. Check moisture sensitivity level classifications for storage handling protocols prior to installation.

Headers, Male Pins Selection Notes

Select this component when surface mount technology is required for high-density 2-row layouts. The ejector feature simplifies removal during maintenance or replacement cycles. Verify that the PCB footprint accommodates the shrouded housing dimensions and that the selected cable assembly aligns with the polarized notch design.

Headers, Male Pins Part Context

This part belongs to the EHT/EC2 series designed for 2mm pitch applications. It mates specifically with common 2mm IDC cable assemblies such as the TCSD series. The Tiger Eye™ branding denotes its reliability in demanding environments. The model number encodes row count, position, plating, and mounting style details.
