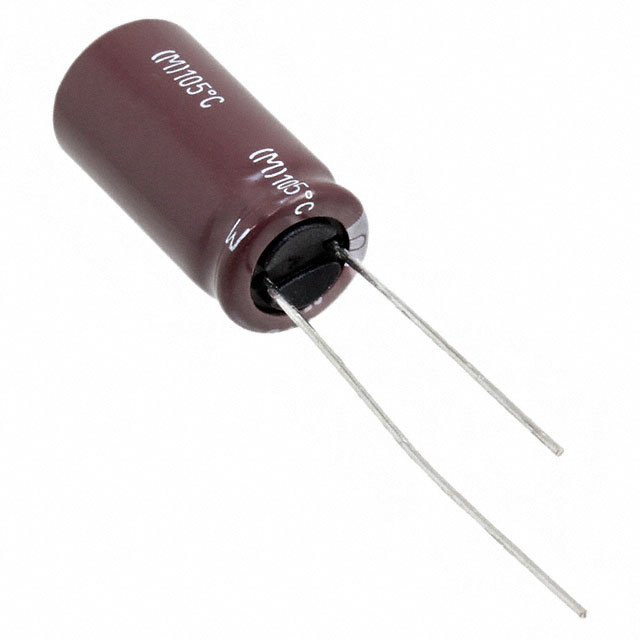

EKYB800ELL181MJ20S

EKYB800ELL181MJ20S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 180UF 20% 80V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EKYB800ELL181MJ20S

• Description：CAP ALUM 180UF 20% 80V RADIAL TH
• Series：KYB
• Mfr：Chemi-Con
• Package：Bulk
• Capacitance：180 µF
• Tolerance：±20%
• Voltage - Rated：80 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：10000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：416 mA @ 120 Hz
• Ripple Current @ High Frequency：1.04 A @ 100 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.394" Dia (10.00mm)
• Height - Seated (Max)：0.846" (21.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：75 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for EKYB800ELL181MJ20S
