ELF-22V025C

Description：CMC 2.5A 2LN TH
Series：V
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:811bd4d3ca95 Category: Common Mode Chokes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

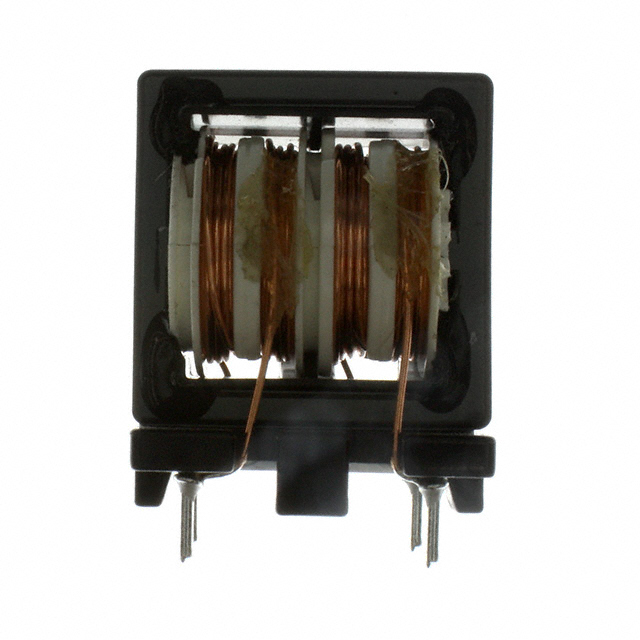

ELF-22V025C is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 2.5A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for ELF-22V025C

Description：CMC 2.5A 2LN TH
Series：V
Mfr：Panasonic Electronic Components
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：2.5A
DC Resistance (DCR) (Max)：115mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.260" L x 0.906" W (32.00mm x 23.00mm)
Height (Max)：1.535" (39.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for ELF-22V025C

ELF-22V025C

Common Mode Chokes Overview

The ELF-22V025C is a common mode choke manufactured by Panasonic Electronic Components. It is designed for through-hole mounting applications and features a maximum current rating of 2.5A with a typical DC resistance of 115 mOhm.

Common Mode Chokes Feature Summary

Through-hole mounting configuration
Common mode noise suppression

Common Mode Chokes Applications

Electronics equipment filtering

Common Mode Chokes Procurement Notes

Verify the exact part number, as the ELF-22V025C may be obsolete or discontinued. Confirm availability of equivalent substitutes such as the ELF-22V025B if direct procurement is not possible. Ensure compatibility with required current ratings and physical mounting constraints before finalizing orders.

Common Mode Chokes Selection Notes

Select this component for applications requiring through-hole common mode chokes with a 2.5A current rating. Consider the typical DC resistance of 115 mOhm when evaluating circuit efficiency. Verify that the physical dimensions and lead spacing match the target PCB layout requirements.

Common Mode Chokes Part Context

This component belongs to the ELF series of common mode chokes from Panasonic Electronic Components. The series typically offers various current ratings and inductance values for different noise suppression needs. The ELF-22V025C specifically targets applications needing moderate current handling capabilities.
