ELF-22V030C

Common Mode Chokes Overview

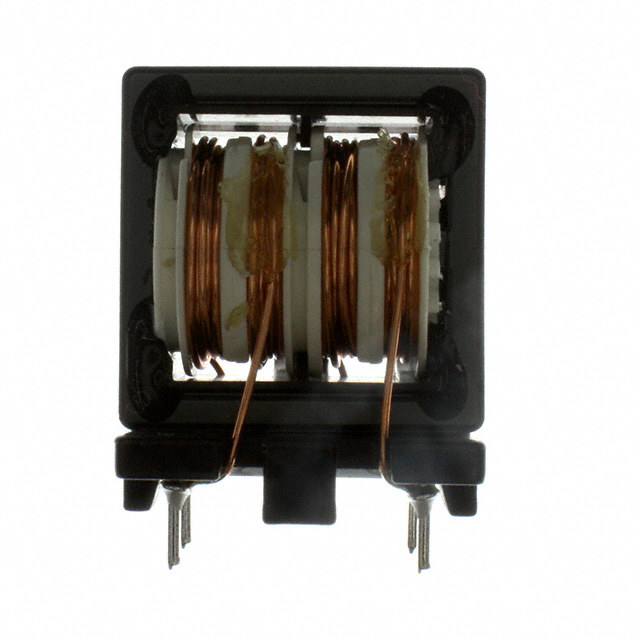

The ELF-22V030C is a two-line through-hole common mode choke manufactured by Panasonic Industry. It is designed for high-frequency applications and features a rated current of 3A with a typical DC resistance of 91mOhm. The component belongs to the ELF series, which provides common mode noise suppression for electronic circuits.

Common Mode Chokes Feature Summary

• Provides common mode noise filtering for two-line configurations
• Designed for high-frequency application scenarios
• Utilizes through-hole mounting technology

Common Mode Chokes Applications

• High-frequency circuit noise suppression
• Two-line signal or power line filtering

Common Mode Chokes Procurement Notes

Verify RoHS compliance status directly with the manufacturer or authorized distributors as indicated in official documentation. Confirm availability status, as this specific part number may be classified as obsolete or discontinued in certain regional catalogs. Ensure compatibility with existing through-hole assembly processes and verify that the 3A rated current meets the specific design requirements.

Common Mode Chokes Selection Notes

Select this component when a two-line through-hole common mode choke with a 3A rating is required for high-frequency noise reduction. Consider the 91mOhm typical DC resistance for power loss calculations. Verify that the physical dimensions and mounting style align with the target PCB layout and mechanical constraints of the final assembly.

Common Mode Chokes Part Context

This component is part of the ELF series from Panasonic Industry, specifically categorized under common mode chokes. It is distinct from surface mount variants and other current ratings within the same family. The ELF-22V030C is identified by its 3A current handling capability and two-line configuration, differentiating it from similar models like the ELF-22V025C.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult Panasonic Industry technical support for potential cross-references or updated product lines if this component is obsolete.
