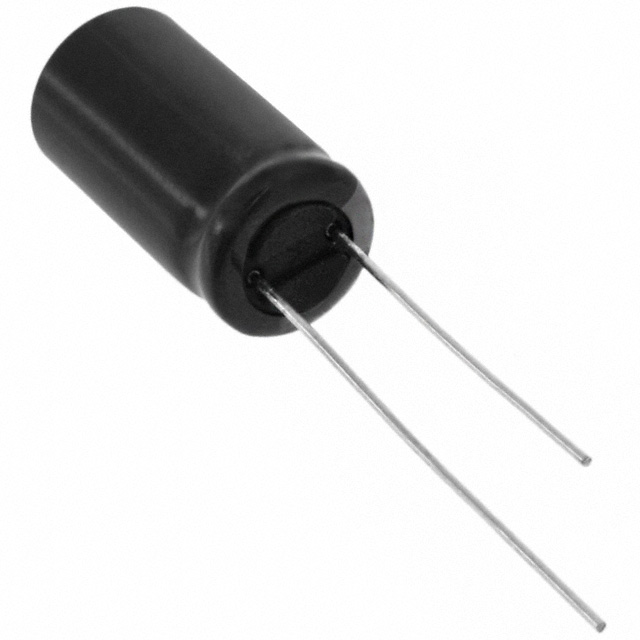

ELXV350EC3221MH20D

ELXV350EC3221MH20D is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 220UF 20% 35V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for ELXV350EC3221MH20D

• Description：CAP ALUM 220UF 20% 35V RADIAL TH
• Series：LXV
• Mfr：Chemi-Con
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：220 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：3000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：256 mA @ 120 Hz
• Ripple Current @ High Frequency：640 mA @ 100 kHz
• Lead Spacing：0.138" (3.50mm)
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.846" (21.50mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：110 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for ELXV350EC3221MH20D
