EMI1206R-120

Chip Ferrite Bead Overview

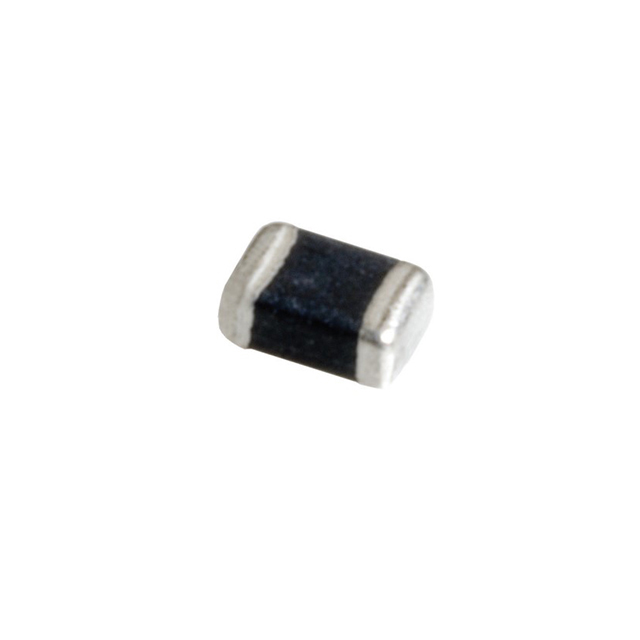

The Delevan EMI1206R-120 is an unshielded surface-mount ferrite bead designed for EMI/RFI suppression in electronic circuits. It operates within a temperature range of -55°C to +125°C and utilizes SMD/SMT termination types. The component features a 1206 (3216 metric) package with dimensions of 3.2 mm length, 1.6 mm width, and 1.1 mm height. Key electrical specifications include an impedance of 120 Ohms at a test frequency of 100 MHz, a maximum DC current rating of 500 mA, and a maximum DC resistance of 150 mOhms.

Chip Ferrite Bead Feature Summary

• Provides effective electromagnetic interference and radio frequency interference suppression
• Designed for high-reliability applications meeting stringent quality specifications
• Utilizes unshielded construction suitable for standard surface-mount assembly processes

Chip Ferrite Bead Applications

• High-frequency signal line filtering
• Power supply noise attenuation
• General-purpose EMI suppression in compact electronics

Chip Ferrite Bead Procurement Notes

Verify the specific manufacturer designation API Delevan or Delevan when sourcing, as corporate structures may vary. Confirm the impedance value of 120 Ohms at 100 MHz matches your circuit requirements. Ensure the 1206 package footprint aligns with your PCB layout. Check RoHS compliance status through official documentation before integration into regulated products.

Chip Ferrite Bead Selection Notes

Select this component when a 120 Ohm impedance at 100 MHz is required for noise reduction. The 500 mA current rating suits moderate power applications. The wide operating temperature range supports harsh environments. Consider the unshielded nature if magnetic coupling with nearby components is a concern. Verify the 150 mOhm DC resistance fits your voltage drop constraints.

Chip Ferrite Bead Part Context

This part belongs to the EMI1206R series of ferrite chip beads from Delevan. The series focuses on providing compact EMI suppression solutions for surface-mount technology. These components are engineered to meet high reliability standards for government and commercial specifications. The 1206 form factor allows for dense PCB layouts while maintaining effective filtering performance.

Chip Ferrite Bead Replacement Considerations

Publicly confirmed substitute part numbers for this specific component are not available in the provided source data. Cross-reference with other 120 Ohm, 1206 package ferrite beads only after verifying identical electrical parameters and physical dimensions.
