EP3C5E144C7N

Field Programmable Gate Array Overview

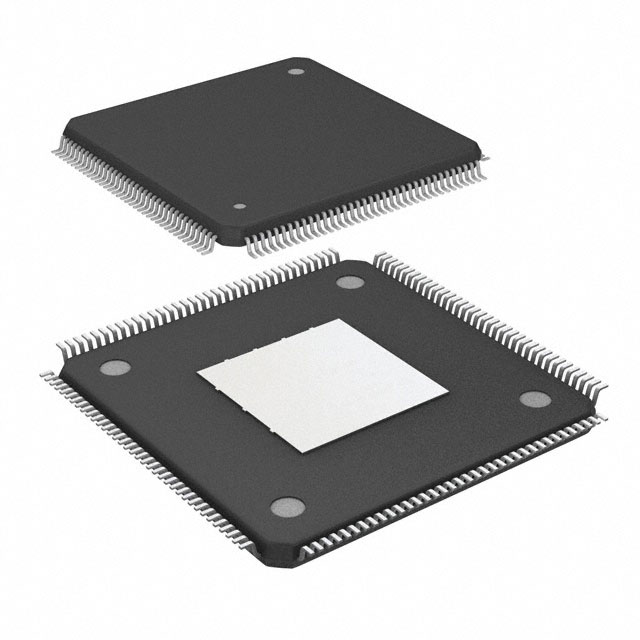

The EP3C5E144C7N is a Cyclone III Field Programmable Gate Array (FPGA) manufactured by Altera. It features 24624 logic elements and 321 Adaptive Logic Modules (ALMs). The device includes 414 kbit of embedded memory and supports up to 82 I/O pins. It operates within a supply voltage range of 1.15V to 1.25V and functions at temperatures between 0°C and 85°C. The component is housed in a 144-LQFP package with exposed pads.

Field Programmable Gate Array Feature Summary

• Supports high-density logic implementation through 321 ALMs for efficient resource utilization
• Integrates substantial embedded memory capacity for data buffering and storage applications
• Enables flexible system integration via extensive I/O capabilities across multiple banks

Field Programmable Gate Array Applications

• Digital electronic technology platform development
• In-system programmable circuit design
• Module-based hardware language implementation

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'C7N' against official manufacturer documentation to confirm temperature grade and packaging details. Ensure compatibility with existing board layouts regarding the 144-LQFP footprint and exposed pad thermal requirements before procurement.

Field Programmable Gate Array Selection Notes

Select this model when designs require moderate logic density with significant embedded memory resources. It is suitable for applications needing reliable operation in commercial temperature ranges. Compare total logic element counts against alternative Cyclone III variants to ensure optimal cost-performance balance for the target complexity.

Field Programmable Gate Array Part Context

This component belongs to the Cyclone III family, designed for cost-sensitive, medium-complexity FPGA applications. It shares architectural similarities with other EP3C series devices but offers distinct logic and memory configurations tailored for specific performance tiers within the portfolio.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements within the same package are limited due to varying logic densities. Consider EP3C5 variants with different suffixes for identical form factors or evaluate higher-tier models like EP3C16 if additional resources are required.
