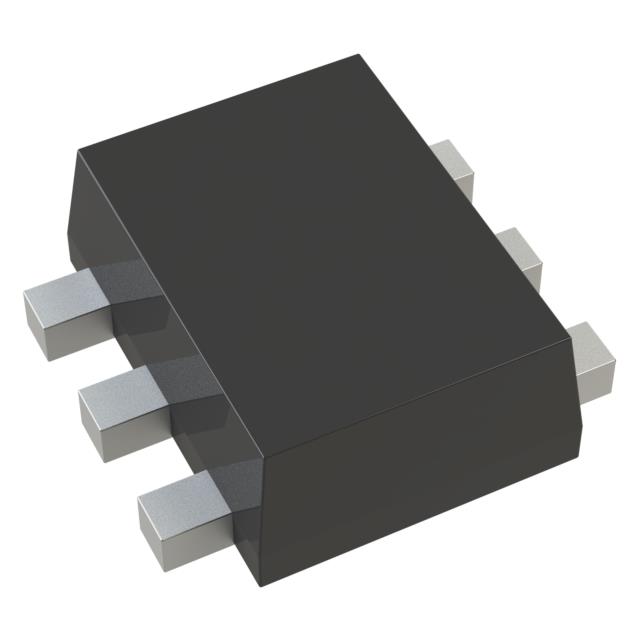

ESD5V0M5-TP

ESD5V0M5-TP is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is TVS DIODE 5VWM 13.5VC SOT563. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for ESD5V0M5-TP

• Description：TVS DIODE 5VWM 13.5VC SOT563
• Series：-
• Mfr：MCC (Micro Commercial Components)
• Package：Tape & Reel (TR)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：5V (Max)
• Voltage - Breakdown (Min)：6V
• Voltage - Clamping (Max) @ Ipp：13.5V
• Current - Peak Pulse (10/1000µs)：5A (8/20µs)
• Power - Peak Pulse：100W
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：SOT-563, SOT-666
• Supplier Device Package：SOT-563
• Unidirectional Channels：5
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for ESD5V0M5-TP
