ESM-16-101

Power Line Filter Modules Overview

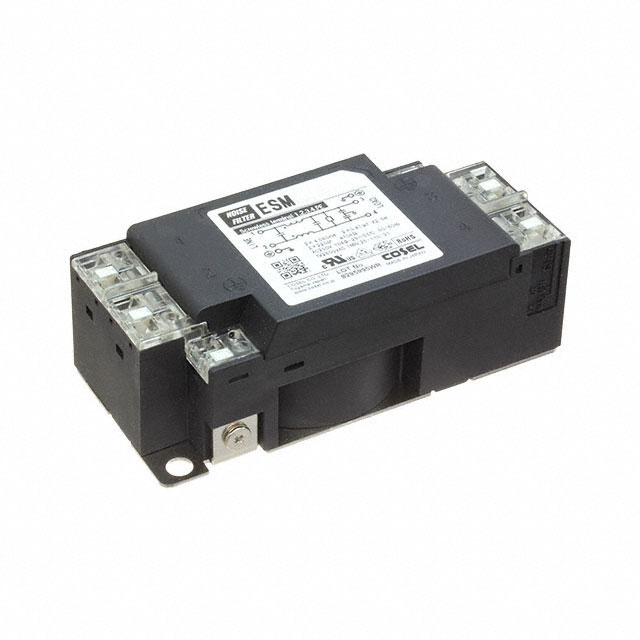

The ESM-16-101 is a single-phase EMC/EMI line filter module manufactured by Cosel USA, Inc. It supports a current rating of 16 A and operates at voltages up to 250 VAC or 250 VDC. The component features a chassis mount package design suitable for integration into power supply systems. It functions within an operating temperature range of -40°C to 85°C, ensuring reliability across diverse environmental conditions.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic compatibility filtering
• Chassis mount structural design
• Wide operational temperature tolerance

Power Line Filter Modules Applications

• General purpose power line filtering
• Industrial equipment noise suppression
• Power supply input stage protection

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation when ordering, as variants such as the ESM-16-101-D may indicate differences in terminal configuration or mounting style compared to the base model. Confirm that the selected variant aligns with the required voltage and current specifications for the target application circuit to ensure proper functionality and safety compliance.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust single-phase noise attenuation in compact form factors. Ensure the installation environment remains within the specified -40°C to 85°C thermal limits. Verify that the chassis mounting method accommodates the physical dimensions and electrical isolation requirements of the host system design.

Power Line Filter Modules Part Context

This module belongs to Cosel's ESM series of power line filter modules, designed for general-purpose electromagnetic interference suppression. The series provides standardized solutions for integrating noise filtering directly into power distribution paths without requiring complex external circuitry.

Power Line Filter Modules Replacement Considerations

Cross-reference with other single-phase 16A chassis-mount filters from Cosel or competitors. Verify identical electrical ratings and mechanical footprint before substitution.
